Same model may have multiple batches, images only for reference.

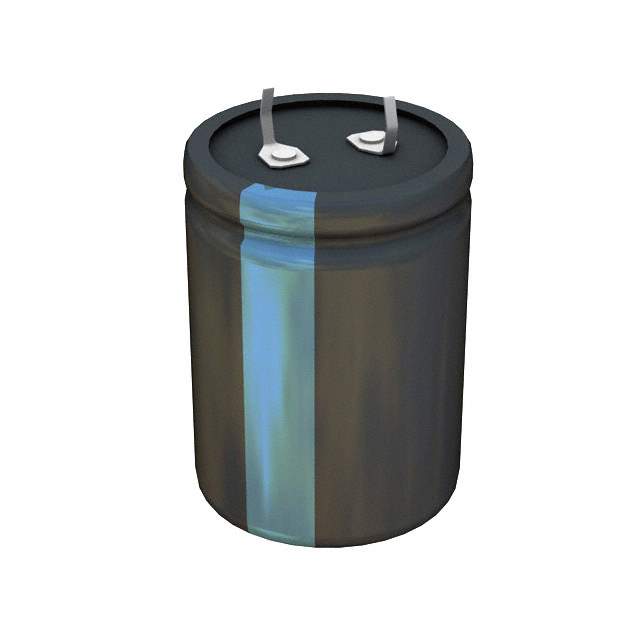

381LQ821M315A042 Real Image
Same model may have multiple batches, images only for reference.

381LQ821M315A042

Part No 381LQ821M315A042
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 820UF 20% 315V SNAP / Cap Aluminum Lytic 820uF 315V 20% (35 X 40mm) Snap-In 10mm 0.202 Ohm 2000mA 2000h 105°C
Datasheet
381LQ821M315A042 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series 381LQ
Packaging Bulk
Capacitance 820μF
Tolerance ±20%
Voltage Rating DC 315V
ESR (Equivalent Series Resistance) 202 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 2A @ 120Hz
Ripple Current - High Frequency 2.8A @ 20kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Maximum) 1.654" (42.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 775483-381LQ821M315A042
Popularity Medium
Supply and Demand Status Limited
Family Name 381LQ
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 381LQ821M315A042 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 381LQ821M315A042 is a snap-in polarized aluminum electrolytic capacitor with a capacitance of 820μF and a voltage rating of 315V.

  • Tolerance: ±20%
  • ESR: 202 mOhm @ 120Hz
  • Ripple Current: 2A @ 120Hz, 2.8A @ 20kHz
  • Package / Case: Radial, Can - Snap-In
  • Lead Spacing: 0.394" (10.00mm)
  • Dimension: 1.378" Dia (35.00mm)
  • Application: General
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
