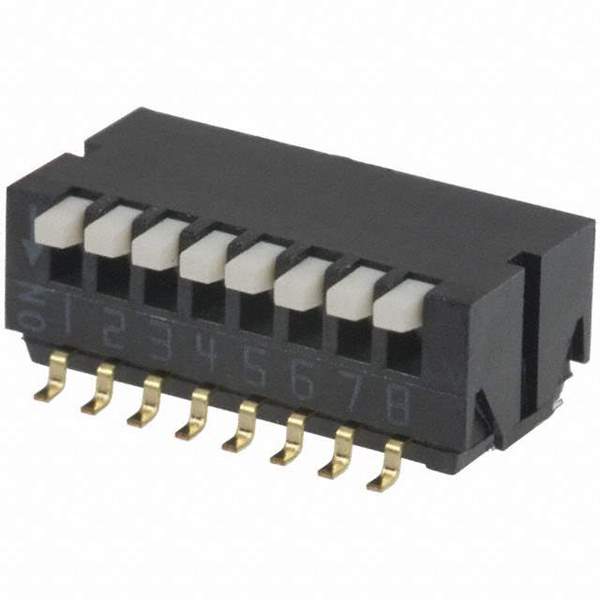

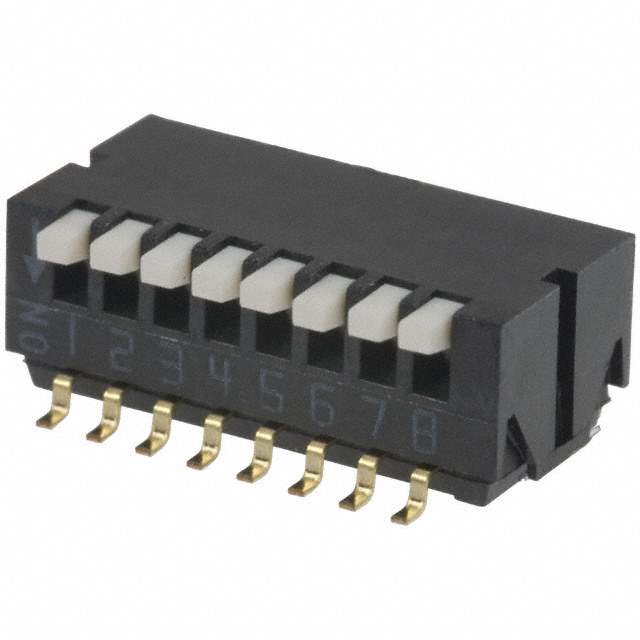

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 8
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.181" (4.60mm)
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.480" (12.19mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1029203-CHP-080TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHP-080TB CAD Model

Description

The Copal Electronics Inc. switch is a SPST circuit switch with a half pitch of 0.050 inches.

  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Mounting Type: Surface Mount
  • Termination Style: Right Angle, Gull-Wing
  • Actuator Type: Piano
  • Electrical Life: 1,000 cycles
  • Mechanical Life: -
  • Actuator Level: Raised
  • Washable: No
  • Body Material: Polyphenylene Sulfide (PPS)
  • Temperature Range: -40°C to 85°C
