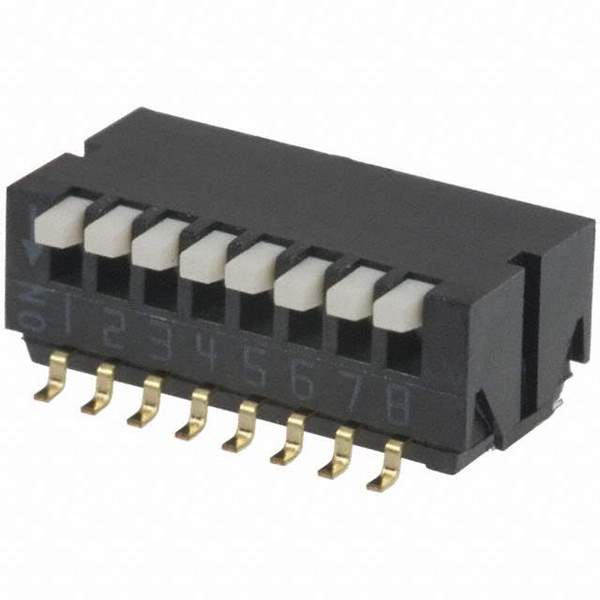

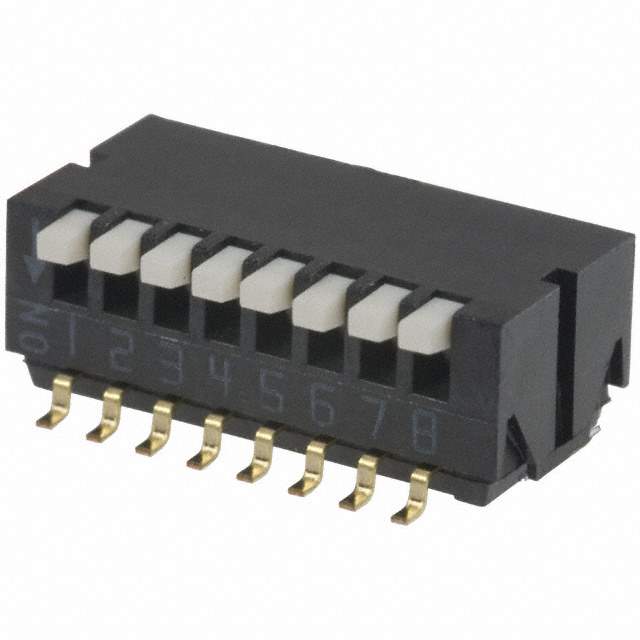

CHP-080B Real Image
Same model may have multiple batches, images only for reference.

CHP-080B

Part No CHP-080B
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 100MA 6V
Datasheet
CHP-080B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Bulk
Status Active
Circuit SPST
Number of Positions 8
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.181" (4.60mm)
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.480" (12.19mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1029202-CHP-080B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHP-080B CAD Model

Description

The Copal Electronics Inc. 1029202-CHP-080B is a surface mount SPST switch with a pitch of 0.050" (1.27mm) and half the number of positions.

  • Pitch: 0.050" (1.27mm)
  • Positions: half
  • Termination Style: gullwing
  • Contact Finish: gold
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Height Above Board: 0.181" (4.60mm)
  • Length: 0.480" (12.19mm)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Piano
  • Electrical Life: 1,000 cycles
  • Actuator Level: raised
  • Washable: not washable
  • Temperature Range: -40°C to 85°C
