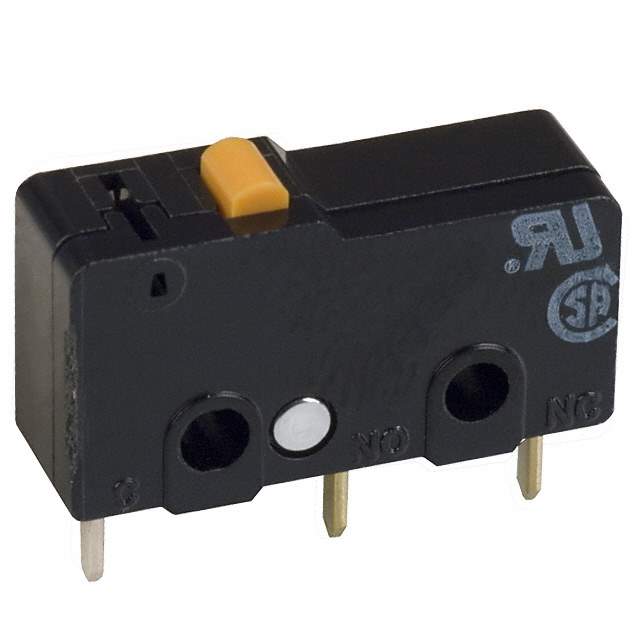

SS-01-FD Real Image
Same model may have multiple batches, images only for reference.

SS-01-FD

Part No SS-01-FD
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Through Hole
Datasheet
SS-01-FD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 4.079gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01
Other Names Z4536,SS01FD,SS01FDBYOMI,-SS-01-FD,SS-01-FD
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233568-SS-01-FD
Ultra Librarian 3D Model Ultra Librarian SS-01-FD CAD Model

Description

The SS-01-FD is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Series: SS
  • Circuit: SPDT
  • Actuator Type: Round (Pin Plunger)
  • Voltage Rating: 125VAC and 30VDC
