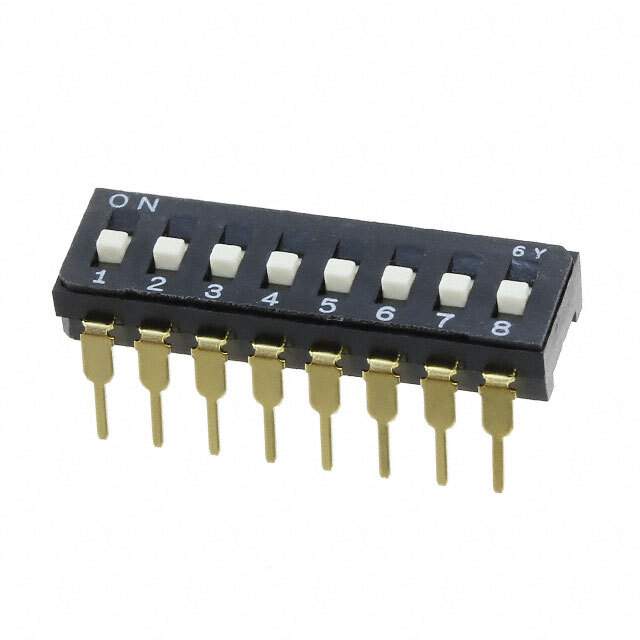

CFS-0802MC Real Image
Same model may have multiple batches, images only for reference.

CFS-0802MC

Part No CFS-0802MC
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SLIDE SWITCHES (FULL PITCH)
Datasheet
CFS-0802MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Series CFS
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.201" (5.10mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.858" (21.80mm)
Operating Temperature Range -40°C ~ 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1161373-CFS-0802MC
Manufacturer Homepage www.nidec-copal-electronics.com/e
Popularity Medium
Supply and Demand Status Limited
Family Name CFS
Introduction Date November 07, 2004
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CFS-0802MC CAD Model

Description

The Copal Electronics Inc. electronic component with Win Source Part Number 1161373-CFS-0802MC is a slide switch with 8 positions and a pitch of 0.100" (2.54mm), full.

  • Supply and demand status: limited
  • Operating Temperature: -40°C ~ 85°C
  • Contact Finish: gold
  • Contact Material: copper alloy
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Height Above Board: 0.201" (5.10mm)
  • Length: 0.858" (21.80mm)
  • Body Material: polyphenylene sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: not specified
  • Actuator Level: raised
  • Washable: not washable
  • Family Name: CFS
  • Manufacturer Homepage: www.nidec-copal-electronics.com/e
  • Introduction Date: November 07, 2004
  • Estimated EOL Date: 2024
  • ECCN: EAR99
