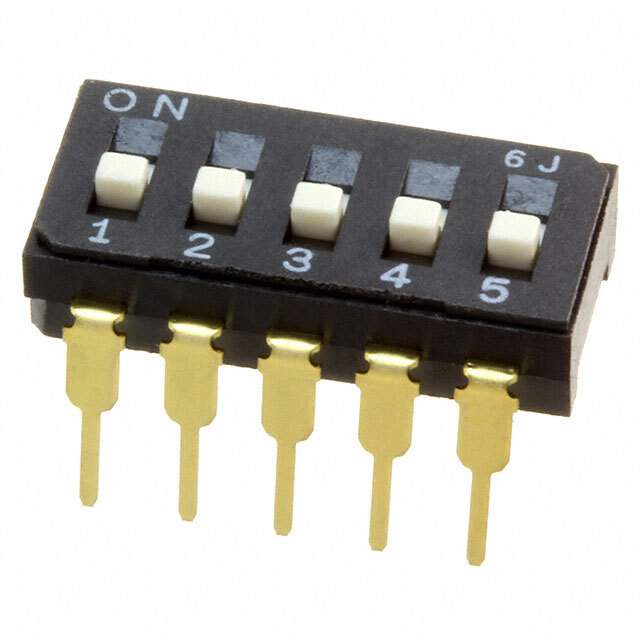

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 5
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.201" (5.10mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.557" (14.15mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1029093-CFS-0502MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CFS-0502MC CAD Model

Description

The Copal Electronics Inc. CFS-0502MC is a switch with five positions.

  • Supply and Demand Status: Balanced
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
