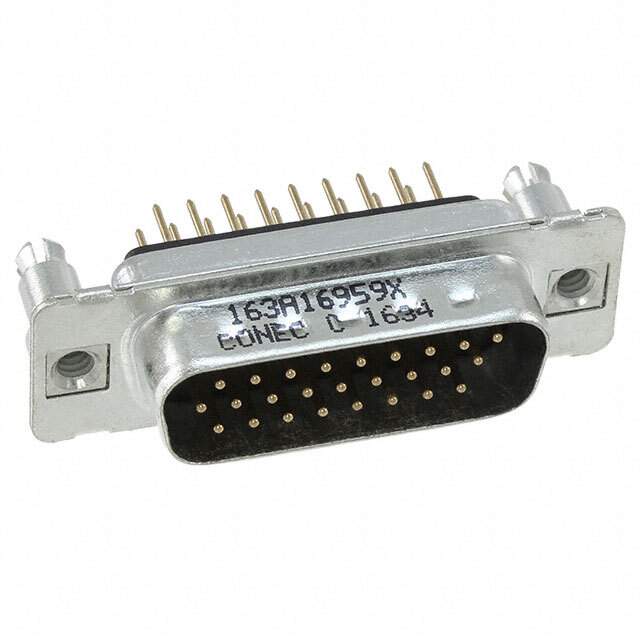

163A16959X Real Image
Same model may have multiple batches, images only for reference.

163A16959X

Part No 163A16959X
Manufacturer Conec
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HD PLUG 26P VERT SLDR
Datasheet
163A16959X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Conec
Series 163A
Packaging Bulk
Connector Style D-Sub, High Density
Connector Type Plug, Male Pins
Number of Positions 26
Number of Rows 3
Shell Size, Connector Layout 2 (DA, A) High Density
Contact Type Signal
Mounting Style Through Hole
Flange Feature Board Side (4-40)
Termination Solder
Features Board Lock, Grounding Indents
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 125°C
Voltage Rating 60V
Current Rating 3A
Color Black
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Copper Alloy
Win Source Part Number 766655-163A16959X
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name 163A
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Czech Republic
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 163A16959X CAD Model

Description

The Conec 163A16959X is a D-Sub, high-density plug connector.

  • Connector Type: D-Sub, High-Density Plug
  • Positions: 26
  • Pitch: 0.050" (1.27mm)
  • Voltage Rating: 60V
  • Current Rating: 3A
  • Mounting Type: Through Hole
  • Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Ingress Protection: IP20
  • Compliance: Halogen-Free
