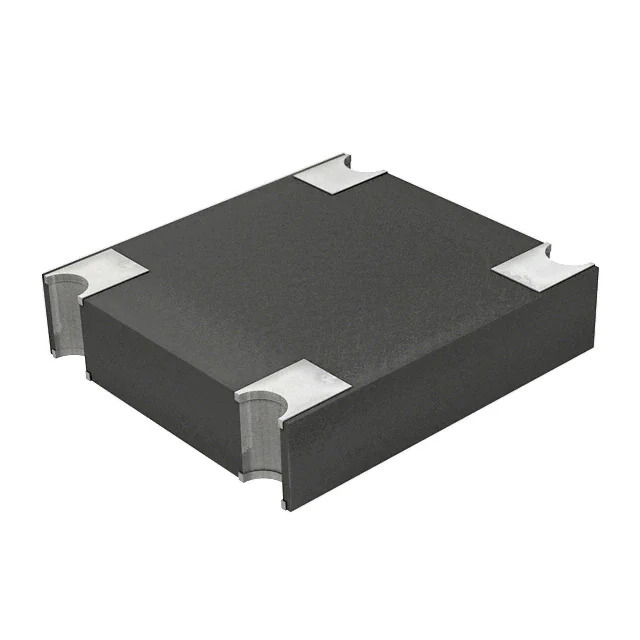

Same model may have multiple batches, images only for reference.
Z4GP206L-HF Comchip Technology
Same model may have multiple batches, images only for reference.

Z4GP206L-HF

Part No Z4GP206L-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 2A ABS
Datasheet
Z4GP206L-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Supplier Device Package ABS(Z4)
Base Product Number Z4GP206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367990-Z4GP206L-HF
Ultra Librarian 3D Model Ultra Librarian Z4GP206L-HF CAD Model

Description

The Z4GP206L-HF is a standard bridge rectifier diode designed for use in various electronic circuits manufactured by Comchip Technology.

  • Series: Z4GP206
  • Package / Case: 4-SMD, No Lead
  • Supplier Device Package: ABS(Z4)
  • Operating Temperature - Max: 175°C
  • Current Rating: 2A
  • Voltage - Forward (Vf) (Max) @ If: 950mV @ 2A
  • Current - Reverse Leakage @ Vr: 5µA @ 600V
  • Phase: Single
  • Voltage - Peak Reverse (Max): 600V
  • Packaging: Tape & Reel (TR)
