Same model may have multiple batches, images only for reference.

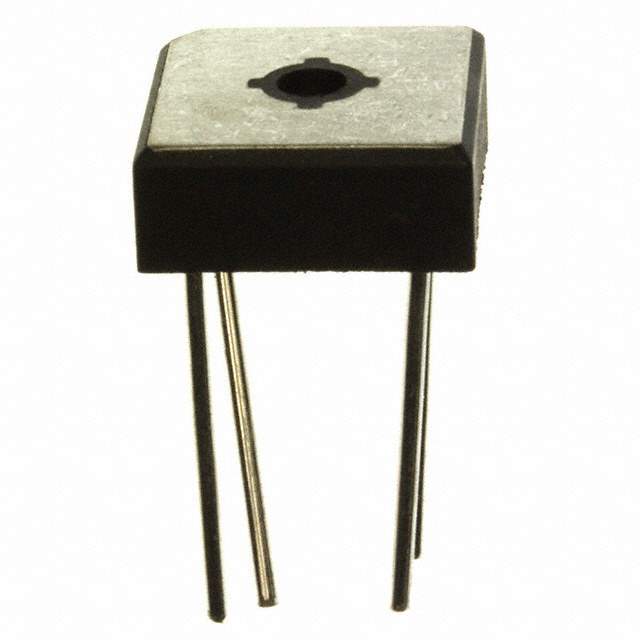

MP1010G-G Real Image
Same model may have multiple batches, images only for reference.

MP1010G-G

Part No MP1010G-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 10A MP8 / Bridge Rectifier Single Phase Standard 1 kV Through Hole MP8
Datasheet
MP1010G-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 5 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Square, MP-8
Supplier Device Package MP8
Base Product Number MP1010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names MP1010GG,641-1377,MP1010-G
Standard Package 200
Win Source Part Number 1080049-MP1010G-G
Ultra Librarian 3D Model Ultra Librarian MP1010G-G CAD Model

Description

The Comchip Technology 1080049-MP1010G-G is a single-phase bridge rectifier diode with a current rating of 10A and a voltage rating of 1kV.

  • Current Rating: 10A
  • Voltage Rating: 1kV
  • Forward Voltage: 1.1V @ 5A
  • Reverse Leakage Current: 10μA @ 1000V
  • Package: through-hole MP-8
  • Family: MP1010
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99
  • Popularity: medium
  • MSL: unlimited
  • REACH: unaffected
  • HTSUS: 8541.10.0080
