Same model may have multiple batches, images only for reference.

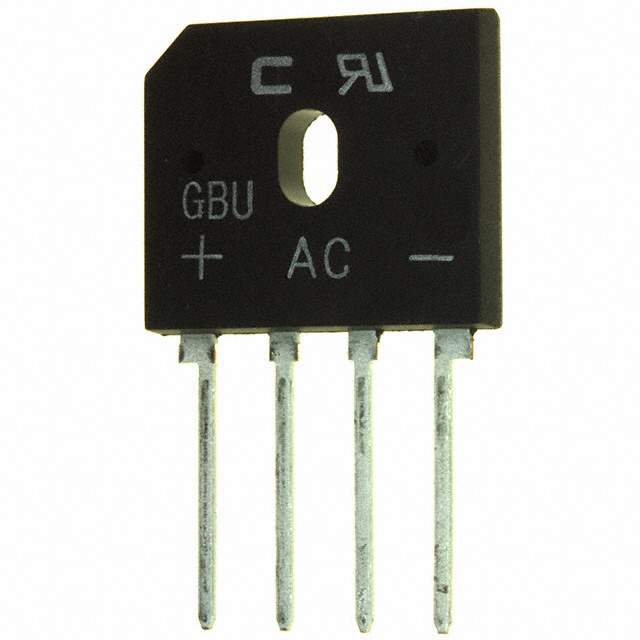

GBU10005-G Real Image
Same model may have multiple batches, images only for reference.

GBU10005-G

Part No GBU10005-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 50V 10A GBU / Diode Rectifier Bridge Single 50V 10A 4-Pin Case GBU Tube
Datasheet
GBU10005-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 50V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775009-GBU10005-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Family Name GBU10005
Introduction Date July 24, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GBU10005-G CAD Model

Description

The Comchip Technology 775009-GBU10005-G is a single-phase standard diode that has a current average rectified (Io) of 10A.

  • Voltage peak reverse (maximum): 50V
  • Voltage forward (Vf) (maximum): 1V @ 5A
  • Family: GBU10005
  • Package: 4-SIP, GBU
  • Temperature Range: -55°C to 150°C (TJ)
  • Quantity per package: 20
  • ECCN: EAR99
  • Estimated EOL date: 2027
  • Alternative parts: GBU1001 C2G, KBU1001 T0, KBU1001G T0, and GBU8A
