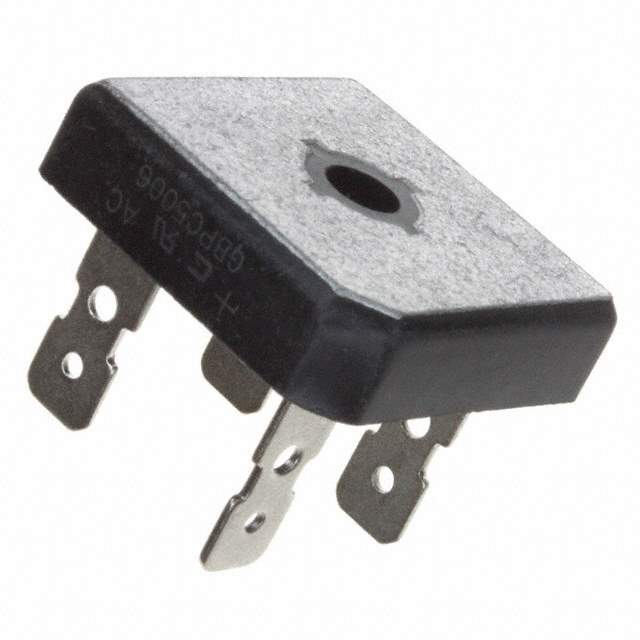

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 50 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 25 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type QC Terminal
Package / Case 4-Square, GBPC
Supplier Device Package GBPC
Base Product Number GBPC5006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-1381,GBPC5006G
Standard Package 50
Win Source Part Number 999208-GBPC5006-G
Ultra Librarian 3D Model Ultra Librarian GBPC5006-G CAD Model

Description

The GBPC5006-G is a single-phase bridge rectifier diode with a maximum peak reverse voltage of 600 V.

  • Maximum Peak Reverse Voltage: 600 V
  • Current Rating: 50 A
  • Forward Voltage: 1.1 V @ 25 A
  • Mounting Type: QC Terminal
  • Package / Case: 4-Square, GBPC
  • Operating Temperature: -55°C to 150°C (TJ)
  • Technology: Standard
  • Current Reverse Leakage: 10 μA @ 600 V
  • Packaging: Tray
  • Standard Package: 50
  • ECCN: EAR99
  • REACH: Unaffected
