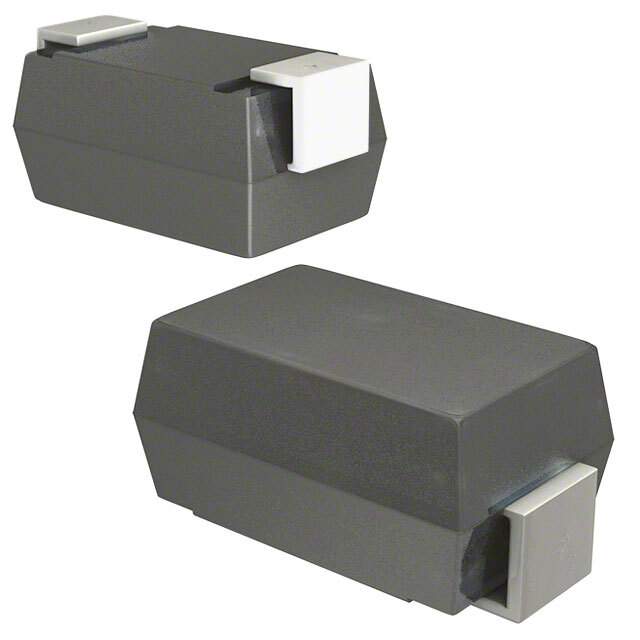

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features Diode Standard 400 V 1A Surface Mount DO-214AC (SMA)
Manufacturer Comchip Technology
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-214AC, SMA
Case / Package DO-214AC (SMA)
Family Name ES1G
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-ES1G-HFDKR, 641-ES1G-HFTR, 641-ES1G-HFCT
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918669-ES1G-HF
Ultra Librarian 3D Model Ultra Librarian ES1G-HF CAD Model

Description

The Comchip Technology 918669-ES1G-HF is a fast recovery diode with a 400 V reverse voltage rating and 1A forward current rating.

  • Voltage Rating: 400 V
  • Current Rating: 1A
  • Mounting Type: Surface Mount
  • Package: DO-214AC (SMA)
  • Recovery Time: Less than 500ns
  • Forward Current: More than 200mA
  • Family Name: ES1G
  • Package: Reel
  • Quantity per Reel: 5000
  • Estimated Production Lead Time: 11 weeks
  • Manufacturer: Comchip Technology
