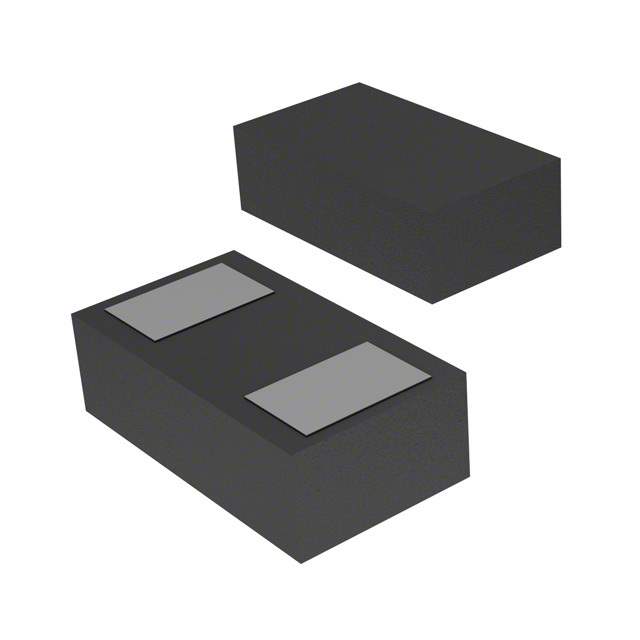

CPDUR5V0 Real Image
Same model may have multiple batches, images only for reference.

CPDUR5V0

Part No CPDUR5V0
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC 0603/SOD523F  /  15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 0603/SOD-523F
Datasheet
CPDUR5V0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Comchip Technology
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 5.1V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 75W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Base Product Number CPDUR5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-1220-2,641-1220-1,Q8976800,641-1220-6
Standard Package 4,000
Win Source Part Number 1052990-CPDUR5V0
Ultra Librarian 3D Model Ultra Librarian CPDUR5V0 CAD Model

Description

The Comchip Technology CPDUR5V0 is a Zener diode that is designed for general-purpose circuit protection.

  • Package: Tape and reel
  • Mounting: SMD (SMT) technology
  • Channel: Bidirectional
  • Voltage Reverse Standoff: 5V
  • Voltage Breakdown (Min): 5.1V
  • Voltage Clamping (Max) @ Ipp: 15V
  • Power Peak Pulse: 75W
  • Capacitance @ Frequency: 15pF @ 1MHz
  • Current Peak Pulse (10/1000µs): 5A (8/20µs)
  • Package/Case: 2-SMD, No Lead
  • Supplier Device Package: 0603/SOD-523F
  • REACH: REACH unaffected
  • HTSUS: 8541.10.0080
