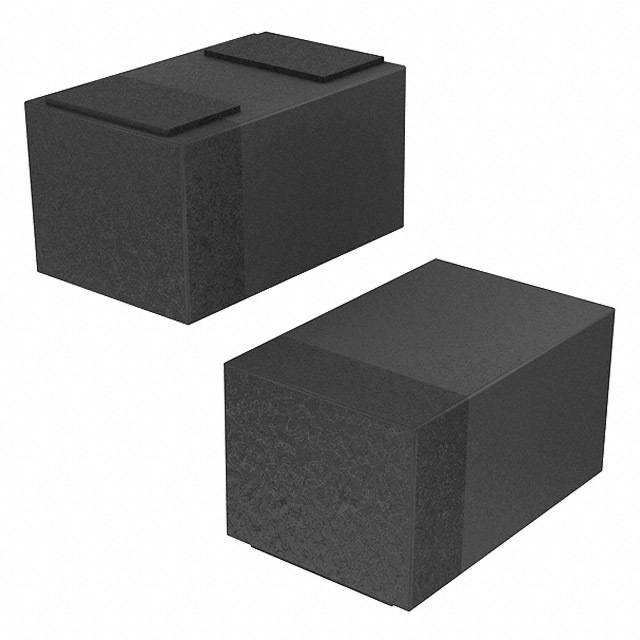

Same model may have multiple batches, images only for reference.
CPDQR3-5V0UP Comchip Technology
Same model may have multiple batches, images only for reference.

CPDQR3-5V0UP

Part No CPDQR3-5V0UP
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0402-3P
Datasheet
CPDQR3-5V0UP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 25W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0402-3P
Win Source Part Number 1030078-CPDQR3-5V0UP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR3-5V0UP CAD Model

Description

The Comchip Technology CPDQR3-5V0UP is a Circuit Protection product that has a Win Source Part Number of 1030078.

  • Packaging: reel - TR
  • Case/Package: 0402-3P
  • Channel Type: Unidirectional
  • Capacitance: 10pF @ 1MHz
