Same model may have multiple batches, images only for reference.

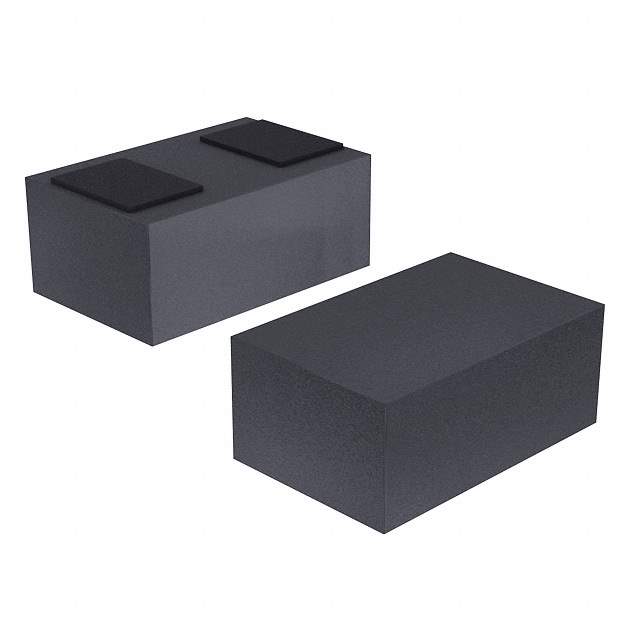

CPDER12V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDER12V0U-HF

Part No CPDER12V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 12VWM 24VC 0503
Datasheet
CPDER12V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging AMMO PACKAGE
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 24V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 120W
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0503/SOD-723F
Win Source Part Number 1030033-CPDER12V0U-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDER12V0U-HF CAD Model

Description

The Comchip Technology CPDER12V0U-HF is a zener diode that is suitable for use in various electronic devices.

  • Supply and Demand Status: Balanced.
  • Stand-off Voltage (Vwm): 12V
  • Minimum Breakdown Voltage: 13.3V
  • Peak Pulse Current (Ippm): 5A (8/20μs)
  • Power Dissipation: 120W
  • Mounting: SMD (SMT)
  • Package: 0503/SOD-723F
  • Direction: Unidirectional
  • Capacitance: 60pF @ 1MHz
