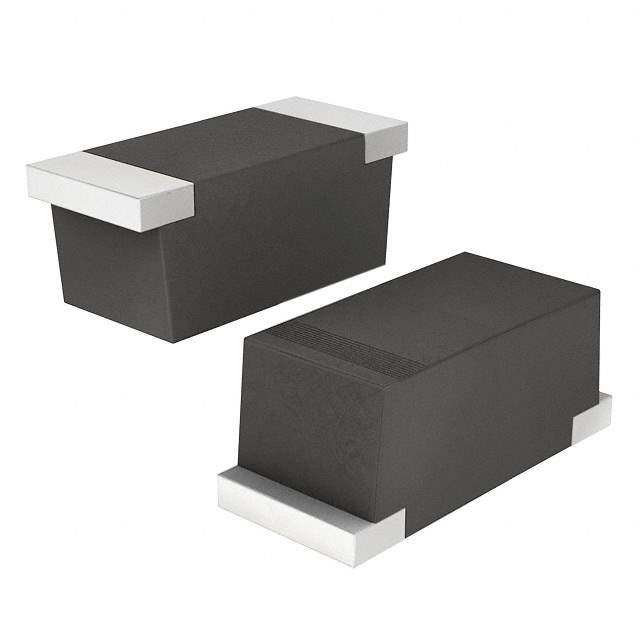

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 50V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Mini SMA/SOD-123
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 100654-CGRM4001-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian CGRM4001-G CAD Model

Description

CGRM4001-G Resistor

The CGRM4001-G resistor is a precision-engineered component that provides consistent performance in electronic circuits. With its compact size and high reliability, it is ideal for space-constrained design environments.

Applications

  • Automotive electronic modules
  • Telecommunications equipment
  • Consumer electronics

Features and Benefits

  • High resistance accuracy
  • Excellent thermal stability
  • Miniaturized for space-saving applications

The CGRM4001-G resistor offers exceptional performance, making it a preferred choice in various high-precision applications.
