Same model may have multiple batches, images only for reference.

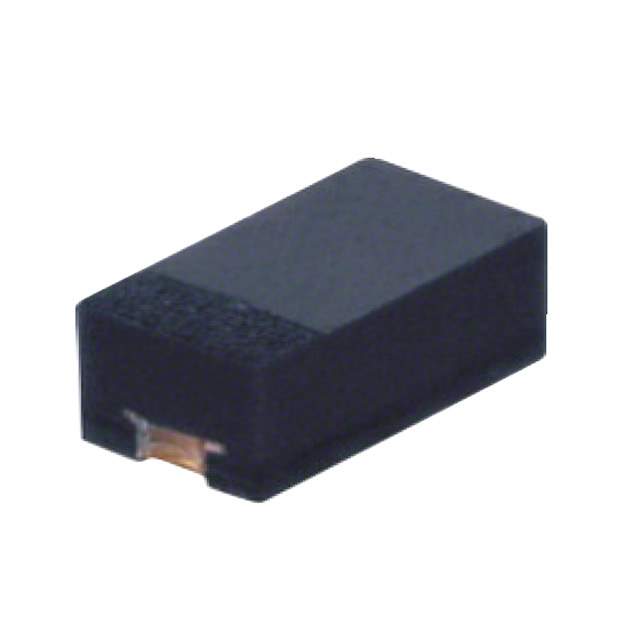

CDBU40-HF Real Image
Same model may have multiple batches, images only for reference.

CDBU40-HF

Part No CDBU40-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description SMD Schottky Barrier Diode | DIODE SCHOTTKY 40V 200MA 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tape and Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Maximum) at If 1V at 40mA
Speed Small Signal =
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 200nA at 30V
Capacitance at Vr, F 5pF at 0V, 1MHz
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Operating Temperature - Junction 125°C (Maximum)
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Win Source Part Number 709882-CDBU40-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDBU40-HF CAD Model

Description

The Comchip Technology 663673 is a discrete semiconductor product that is used for small signal speed.

  • Mounting: Tape and Reel
  • Mounting Style: SMD
  • Type: Schottky Diode
  • Current - Average Rectified (Io): 200mA
  • Reverse Recovery Time (trr): 5ns
  • Operating Temperature - Junction: 125°C (maximum)
