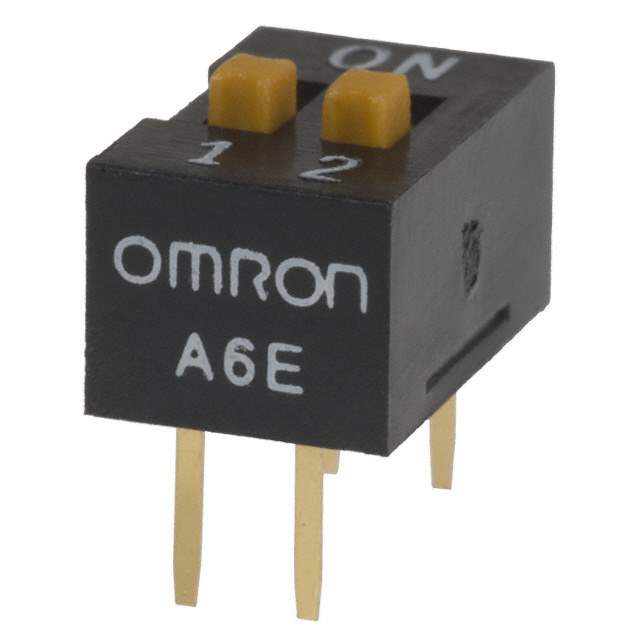

A6E-2104 Real Image
Same model may have multiple batches, images only for reference.

A6E-2104

Part No A6E-2104
Manufacturer Omron
Catalog DIP Switches
Description DIP Switch | SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.280" (7.10mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.261" (6.63mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 73
MSL Level Not Applicable
Win Source Part Number 1134774-A6E-2104
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A6E-2104 CAD Model

Description

The A6E-2104 from Omron Electronics Inc-EMC Div is a through-hole type switch.

  • Positions: 2
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Actuator Type: Slide (Standard)
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Height Above Board: 0.280" (7.10mm)
  • Length: 0.261" (6.63mm)
  • Sealed: Flux Protection
  • Circuit: SPST
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Raised
  • Washable: No
  • Category: Switches
  • Temperature Range: -20°C to 70°C
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 73 pieces
