Same model may have multiple batches, images only for reference.

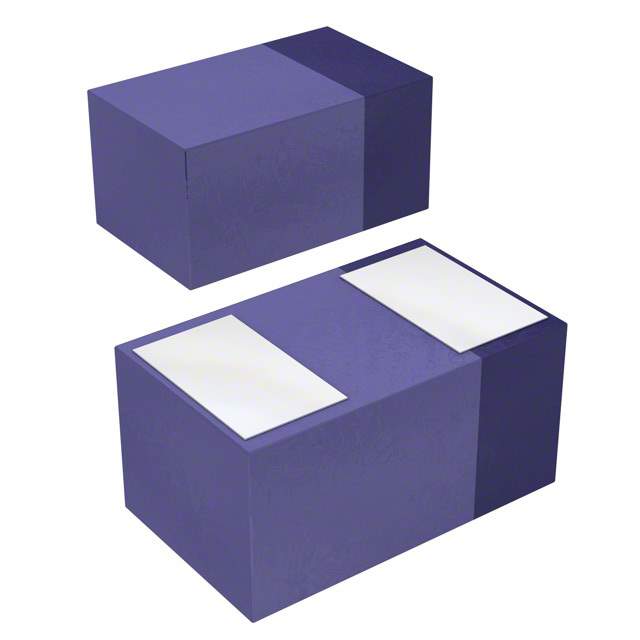

CDBQR00340 Real Image
Same model may have multiple batches, images only for reference.

CDBQR00340

Part No CDBQR00340
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 30MA 0402
Datasheet
CDBQR00340 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 30mA
Voltage - Forward (Vf) (Max) @ If 370mV @ 1mA
Current - Reverse Leakage @ Vr 1μA @ 40V
Capacitance @ Vr, F 1.5pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1028664-CDBQR00340
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDBQR00340 CAD Model

Description

Comchip Technology presents the CDBQR00340 Schottky diode that is designed to operate in SMD (SMT) mounting.

  • Mounting: SMD (SMT)
  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 30mA
  • Forward Voltage: 370mV @ 1mA
  • Reverse Leakage Current: 1μA @ 40V
  • Capacitance: 1.5pF @ 1V, 1MHz
  • Operating Temperature: up to 125°C (Max)
  • Package: 0402/SOD-923F
  • Package Quantity: reel of 5k pcs
  • Suitable for: use in various applications in the electronics industry
