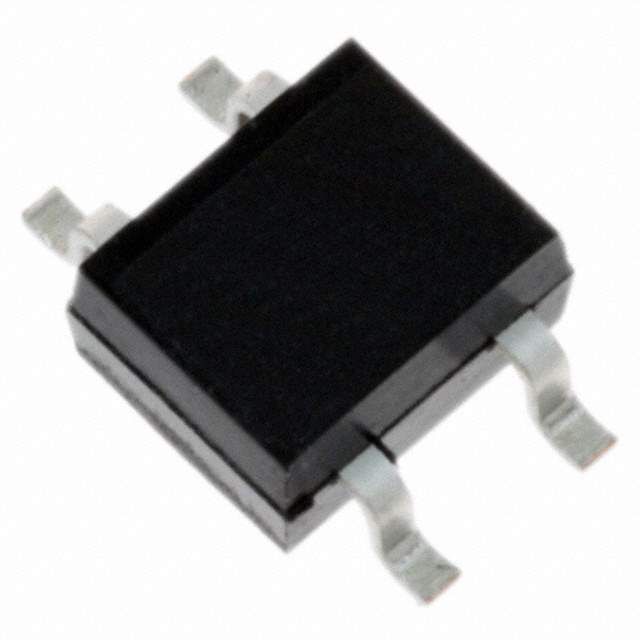

CDBHD2100-G Real Image
Same model may have multiple batches, images only for reference.

CDBHD2100-G

Part No CDBHD2100-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description Low VF SMD Schottky Bridge Rectifiers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Maximum) @ If 850mV @ 1A
Current - Reverse Leakage @ Vr 500μA @ 100V
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting SMD
Package TO-269AA, 4-BESOP
Manufacturer Package Mini-Dip (TO-269AA)
Win Source Part Number 1160482-CDBHD2100-G
Manufacturer Homepage www.comchiptech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDBHD2100-G CAD Model

Description

The CDBHD2100-G electronic component is a Schottky diode manufactured by Comchip Technology.

  • Manufacturer: Comchip Technology
  • Type: Schottky Diode
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Operating Temperature: -55°C to 125°C
  • Voltage Peak Reverse (Maximum): 100V
  • Current Average Rectified (Io): 2A
  • Current Reverse Leakage @ Vr: 500μA @ 100V
  • Mounting Type: SMD
  • Package: TO-269AA, 4-BESOP
  • Fake Products Threat: 49% (verify authenticity)
