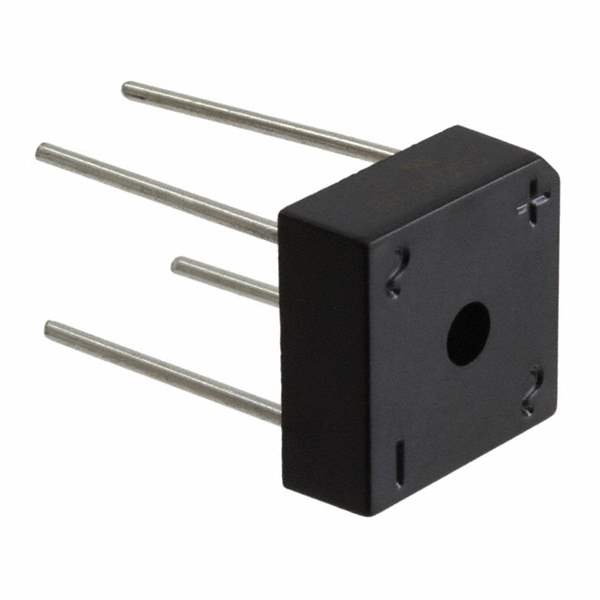

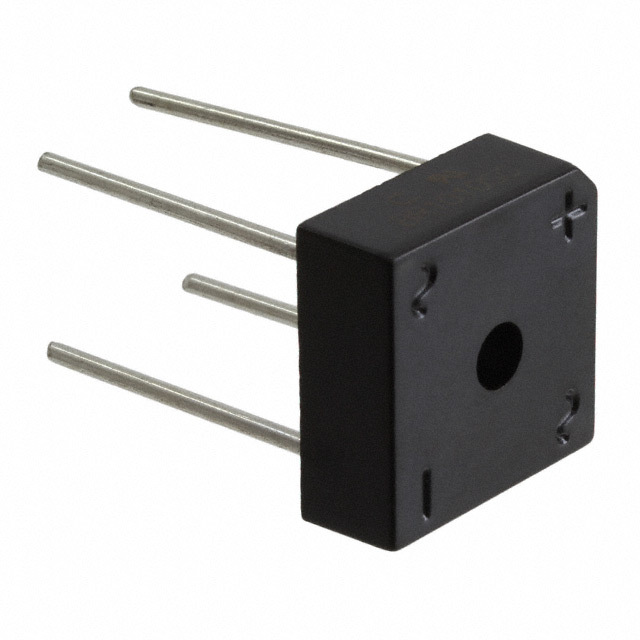

BR1001SG-G Comchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BR1001SG-G

Part No BR1001SG-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 100V 10A BR-8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 5 A
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Case / Package 4-Square, BR-8
Supplier Device Package BR-8
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1490938-BR1001SG-G
Ultra Librarian 3D Model Ultra Librarian BR1001SG-G CAD Model

Description

N
