Same model may have multiple batches, images only for reference.

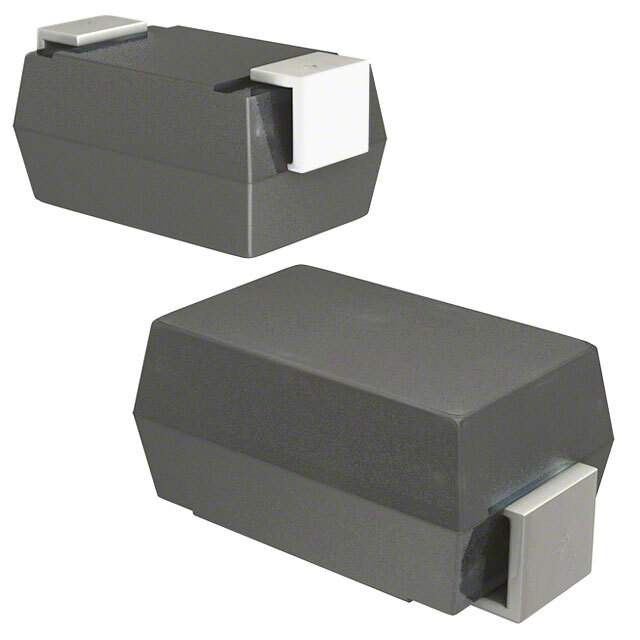

ASMAJ36CA-HF Real Image
Same model may have multiple batches, images only for reference.

ASMAJ36CA-HF

Part No ASMAJ36CA-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description DIODE TVS 36V 400W SMA BI-DIR AU / 58.1V Clamp 6.9A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Datasheet
ASMAJ36CA-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 6.9A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Base Product Number ASMAJ36
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 5,000 pcs
Win Source Part Number 1381458-ASMAJ36CA-HF
Ultra Librarian 3D Model Ultra Librarian ASMAJ36CA-HF CAD Model

Description

The 1381458-ASMAJ36CA-HF is a transient voltage suppressor (TVS) diode from Comchip Technology. 1381458-ASMAJ36CA-HF from Comchip Technology.

  • Series: Automotive
  • AEC-Q101: Yes
  • Type: Zener
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Clamping Voltage: 58.1V @ Peak Pulse Current
  • Power Rating: 400W
  • Peak Pulse Current: 6.9A
  • Mounting Type: Surface Mount
  • Package: DO-214AC (SMA)
  • Temperature Range: -55°C to 150°C
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (Unlimited)
