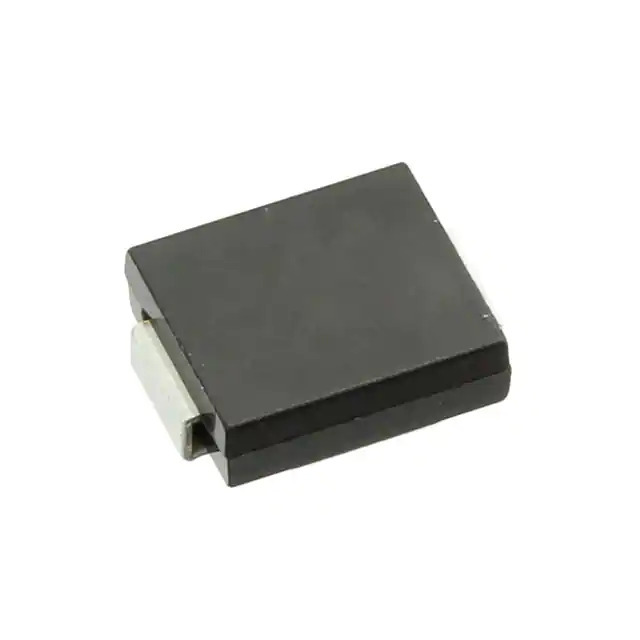

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number ACDBC340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367136-ACDBC340-HF
Ultra Librarian 3D Model Ultra Librarian ACDBC340-HF CAD Model

Description

The ACDBC340-HF is a single rectifier diode from Comchip Technology.

  • Series: ACDBC340, Automotive, AEC-Q101
  • Maximum Reverse Voltage: 40 V
  • Average Rectified Current: 3A
  • Forward Voltage Drop: 550 mV @ 3A
  • Recovery Speed: Less than 500ns
  • Reverse Leakage Current: 500 µA @ 40V
  • Capacitance: 150pF @ 4V and 1MHz
  • Mounting Type: Surface Mountable
  • Package: DO-214AB (SMC)
  • Operating Temperature: -55°C to 125°C
  • Applications: Automotive and other industries
