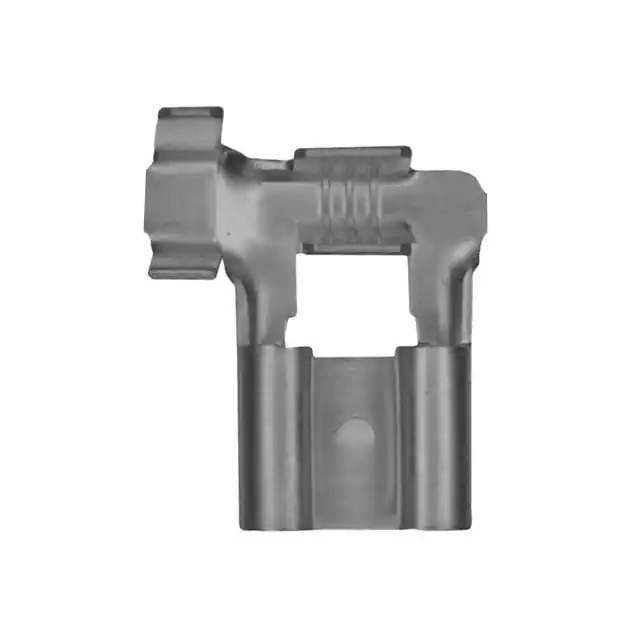

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.240" (6.10mm)
Length - Overall -
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.160" (2.79mm ~ 4.06mm)
Base Product Number 63012
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1357111-63012-2
Ultra Librarian 3D Model Ultra Librarian 63012-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston series offers a wide range of quick connect and quick disconnect terminals for various applications.

  • Terminal Type: Female
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Wire Gauge: 14-18 AWG
  • Material: Brass
  • Finish: Tin
  • Termination: Crimp
  • Insulation: Non-Insulated
  • Mounting: Free Hanging (In-Line), Right Angle
  • HTSUS: 8536.90.4000
  • ECCN: EAR99
  • Series: Faston
