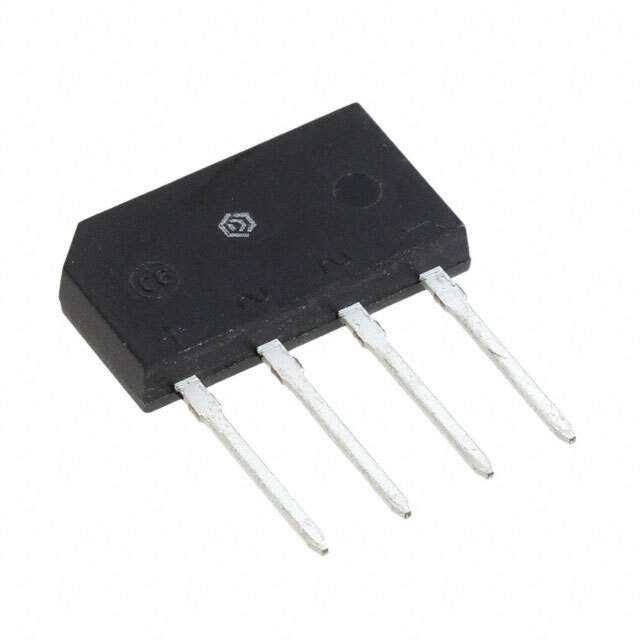

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 4A
Current - Reverse Leakage at Vr 5μA at 200V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBL
Supplier Device Package GBL
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1176942-GBL02
Manufacturer Homepage www.wontop.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBL02 CAD Model

Description

The GBL02 is a single-phase diode from GeneSiC Semiconductor. It has a maximum peak reverse voltage of 200V and an average rectified current of 4A.

  • Type: Single-phase diode
  • Maximum Peak Reverse Voltage: 200V
  • Average Rectified Current: 4A
  • Operating Temperature: -55°C to 150°C
  • Package: GBL
  • Forward Voltage: 1.1V @ 4A
