Same model may have multiple batches, images only for reference.

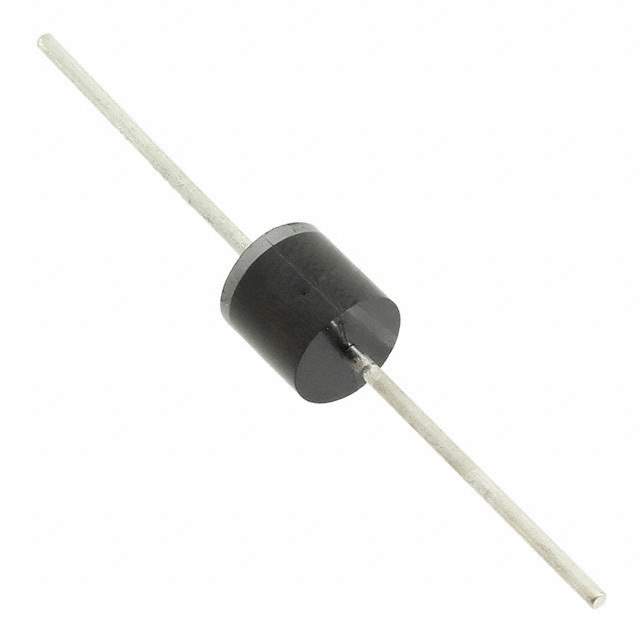

5KP7.0A-G Real Image
Same model may have multiple batches, images only for reference.

5KP7.0A-G

Part No 5KP7.0A-G
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 7VWM 12VC R6
Datasheet
5KP7.0A-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Tape in Box
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V
Minimum Breakdown Voltage 7.78V
Maximum Clamping Voltage 12V
Current - Peak Pulse (10/1000μs) 416.67A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package R6, Axial
Manufacturer Package R-6
Win Source Part Number 764283-5KP7.0A-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian 5KP7.0A-G CAD Model

Description

The 5KP7.0A-G is a zener diode manufactured by Comchip Technology.

  • Mounting Style: Through-hole
  • Package: R6, Axial
  • Operating Temperature: -55°C to 150°C (TJ)
  • Voltage - Reverse Standoff: 7V
  • Power - Peak Pulse: 5000W (5kW)
  • Current - Peak Pulse (10/1000μs): 416.67A
  • Applications: General
  • Minimum Breakdown Voltage: 7.78V
  • Maximum Clamping Voltage: 12V
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: 250
