Same model may have multiple batches, images only for reference.

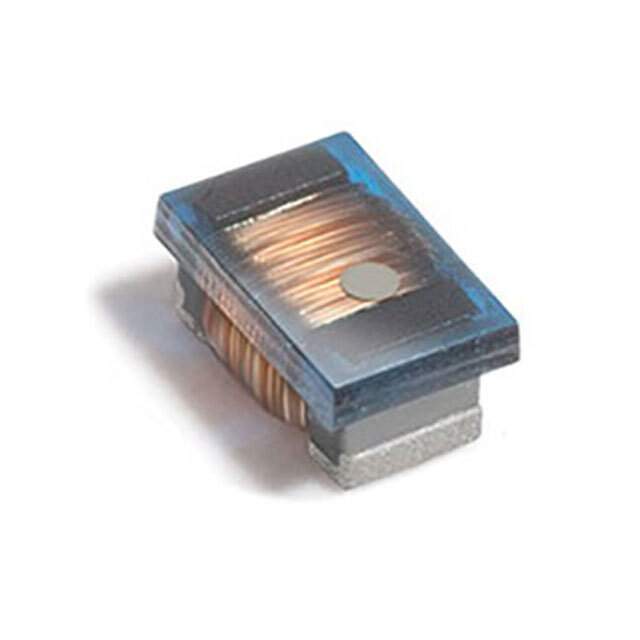

0603AF-421XJEW Real Image
Same model may have multiple batches, images only for reference.

0603AF-421XJEW

Part No 0603AF-421XJEW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 420NH 610MA 330MOHM SM
Datasheet
0603AF-421XJEW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features Unshielded - Inductor 330mOhm Max 0603 (1608 Metric) -
Manufacturer Coilcraft
Series 0603AF
Package Strip
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 0603 (1608 Metric)
Case / Package 0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 2457-0603AF-421XJEW, 2457-0603AF-421XJE_, 2457-0603AF-421XJE_-ND, 2457-0603AF-421XJE_TR-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904637-0603AF-421XJEW
Ultra Librarian 3D Model Ultra Librarian 0603AF-421XJEW CAD Model

Description

The 0603AF-421XJEW electronic component is manufactured by Coilcraft and belongs to the Inductors category.

  • Popularity: High
  • Supply and demand status: Balanced
  • Shielding: Unshielded
  • Inductor: 330mOhm Max 0603 (1608 Metric)
  • Operating temperature range: -40°C to 85°C
  • Win Source Part Number: 904637-0603AF-421XJEW
