Same model may have multiple batches, images only for reference.

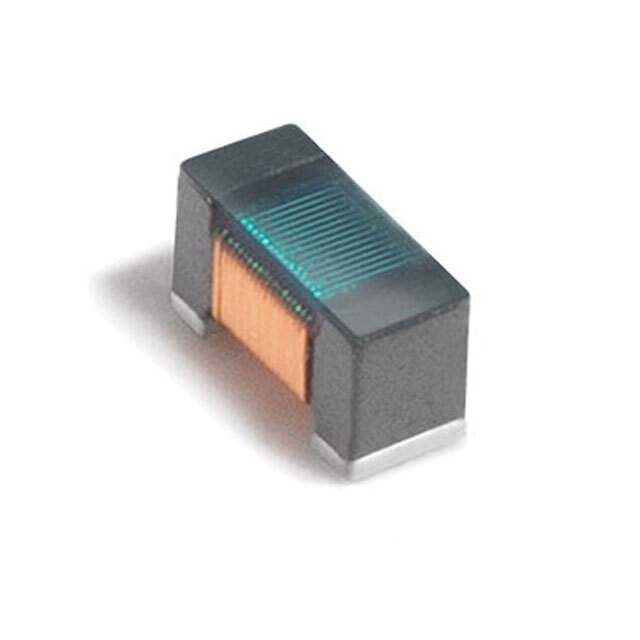

0402DF-901XJRW Real Image
Same model may have multiple batches, images only for reference.

0402DF-901XJRW

Part No 0402DF-901XJRW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 900NH 230MA 1.5OHM SMD / 900 nH Unshielded Wirewound Inductor 230 mA 1.5Ohm Max 0402 (1005 Metric)
Datasheet
0402DF-901XJRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr COILCRAFT
Series 0402DF
Package Strip
Type Wirewound
Material - Core Ferrite
Inductance 900 nH
Tolerance ±5%
Current Rating (Amps) 230 mA
Shielding Unshielded
DC Resistance (DCR) 1.5Ohm Max
Frequency - Self Resonant 760MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 7.9 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.044" L x 0.026" W (1.11mm x 0.66mm)
Height - Seated (Max) 0.026" (0.66mm)
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1337168-0402DF-901XJRW
Ultra Librarian 3D Model Ultra Librarian 0402DF-901XJRW CAD Model

Description

The 0402DF-901XJRW is a wirewound fixed inductor from COILCRAFT.

  • Inductance: 900nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 1.5Ohm Max
  • Current Rating: 230mA
  • Package: 0402 (1005 Metric)
  • Operating Temperature: -40°C to 125°C
  • Series: 0402DF
  • Rating: AEC-Q200
  • Frequency Self Resonant: 760MHz
  • Mounting Type: Surface Mount
