3020-20-0300-00-TR CNC Tech
Same model may have multiple batches, images only for reference.

3020-20-0300-00-TR

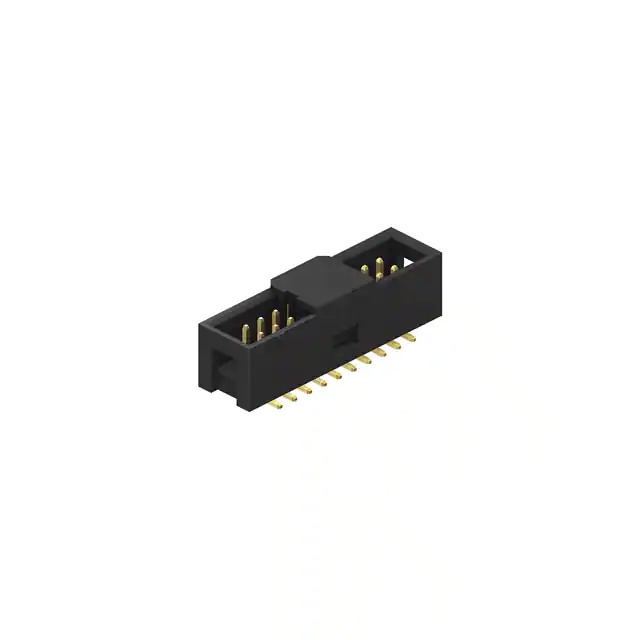

Part No 3020-20-0300-00-TR
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 2.54MM / Connector Header Surface Mount 20 position 0.100" (2.54mm)
Datasheet
3020-20-0300-00-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr CNC Tech
Series -
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.354" (9.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA9T), Nylon 9T
Features Keying Slot, Pick and Place
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A (AC/DC)
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post Flash
Applications -
Base Product Number 3020-20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1355173-3020-20-0300-00-TR
Ultra Librarian 3D Model Ultra Librarian 3020-20-0300-00-TR CAD Model

Description

The 1355173-3020-20-0300-00-TR is a male pin header connector from CNC Tech.

  • Category: Rectangular Connectors
  • Mounting Type: Surface Mount
  • Current Rating: 3A (AC/DC)
  • Voltage Rating: Unspecified
  • Pitch: 0.100" (2.54mm)
  • Positions: 20
  • Rows: 2
  • Shrouded: 4 Walls
  • Termination Method: Solder
  • Fastening Type: Push-Pull
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA9T), Nylon 9T
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Connection Type: Board to Cable/Wire
  • Keying: Slot
  • RoHS Compliant: Yes
  • REACH: Unaffected
