Same model may have multiple batches, images only for reference.

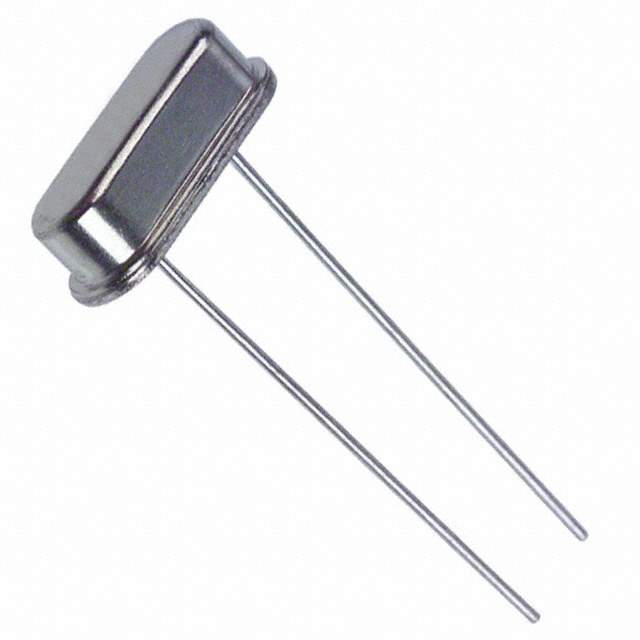

HC-49/U-S24000000ABJB Real Image
Same model may have multiple batches, images only for reference.

HC-49/U-S24000000ABJB

Part No HC-49/U-S24000000ABJB
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF TH / 24 MHz ±30ppm Crystal 18pF 50 Ohms HC-49/US
Datasheet
HC-49/U-S24000000ABJB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Citizen Finedevice Co Ltd
Series HC49US
Package Bulk
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.453" L x 0.183" W (11.50mm x 4.66mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 300-6045,300-6045-NDR,300-8510,300-8510-ND,HC49US-24.000MABJ,HC49US-24.000MABJ-UB,HC49US24.000MABJ,HC49US24.000MABJ-UB,HC49US24.000MABJB,HC49US24.000MABJUB
Standard Package 1,000
Win Source Part Number 1103451-HC-49/U-S24000000ABJB
Ultra Librarian 3D Model Ultra Librarian HC-49/U-S24000000ABJB CAD Model

Description

The Citizen Finedevice Co Ltd HC-49/U-S24000000ABJB is a high-quality crystal that is used in various applications.

  • Frequency: 24 MHz
  • Frequency Tolerance: ±30ppm
  • Mounting Type: Through-hole
  • Operating Temperature: -10°C to 60°C
  • Height: 0.138" (3.50mm)
  • Dimension: 0.453" L x 0.183" W (11.50mm x 4.66mm)
