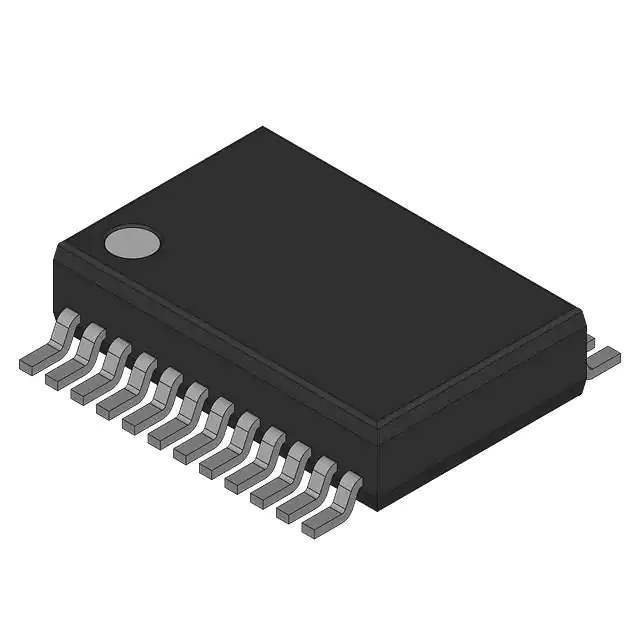

CS5534-AS

Name: CS5534-AS
Brand: Cirrus Logic Inc.
SKU: 580727
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CS5534-AS
Manufacturer	Cirrus Logic Inc.
Catalog	Data Acquisition - Analog to Digital Converters (ADC)
Description	24-BIT ADC WITH AMPLIFIER
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr	Cirrus Logic Inc.
Package	Bulk
Product Status	Active
Number of Bits	24
Sampling Rate (Per Second)	3.84k
Number of Inputs	4
Input Type	Differential
Data Interface	MICROWIRE™, Serial, SPI™
Configuration	MUX-PGA-ADC
Number of A/D Converters	1
Architecture	Sigma-Delta
Reference Type	External
Voltage - Supply, Analog	4.75V ~ 5.25V
Voltage - Supply, Digital	4.75V ~ 5.25V
Features	PGA, Selectable Address
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	24-SSOP (0.209", 5.30mm Width)
Supplier Device Package	24-SSOP
Mounting Type	Surface Mount
Standard Package	1 pcs
MSL Level	2 (1 Year)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	580727-CS5534-AS
Ultra Librarian 3D Model	Ultra Librarian CS5534-AS CAD Model

Alternative Products

Description

The CS5534-AS is an analog to digital converter (ADC) integrated circuit (IC) designed for data acquisition applications.

Features: Selectable address PGA
Analog Supply Voltage: 4.75V to 5.25V
Digital Supply Voltage: 4.75V to 5.25V
Configuration: MUX-PGA-ADC
Inputs: Four differential inputs
Architecture: Sigma-delta
Resolution: 24-bit
Data Interfaces: MICROWIRE™, serial, and SPI™
Package: 24-SSOP
Mounting: Surface mountable
Operating Temperature: -40°C to 85°C
Manufacturer: Cirrus Logic Inc.
Status: Active
