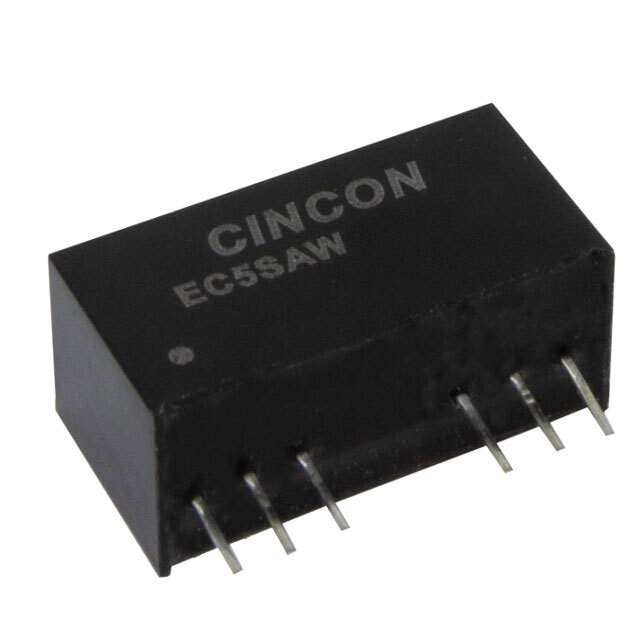

Same model may have multiple batches, images only for reference.

EC5SAW-48D12N

Name: EC5SAW-48D12N
Brand: Cincon Electronics Co. LTD
SKU: 1338306
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EC5SAW-48D12N
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 417mA, 417mA 18V - 75V Input
Datasheet	EC5SAW-48D12N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	EC5SAW (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	417mA, 417mA
Power (Watts)	10 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	88%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 6 Leads
Size / Dimension	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Control Features	Enable, Active Low
Approval Agency	CE
Base Product Number	EC5SAW
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338306-EC5SAW-48D12N
Ultra Librarian 3D Model	Ultra Librarian EC5SAW-48D12N CAD Model

Alternative Products

Description

The Cincon Electronics Co. LTD EC5SAW (10W) series is a DC-DC converter designed for use in ITE (Commercial) applications.

Manufacturer: Cincon Electronics Co. LTD
Series: EC5SAW (10W)
Application: ITE (Commercial)
Power: 10W
Efficiency: 88%
Voltage Isolation: 3 kV
Current Output: 417mA, 417mA
Input Voltage: 18V to 75V
Output Voltage: 12V and -12V
Mounting Type: Through-Hole
Case/Package: 8-SIP module, 6 leads
Remote On/Off: Enable, Active Low
Packaging: Tube
Standard Package: 10
