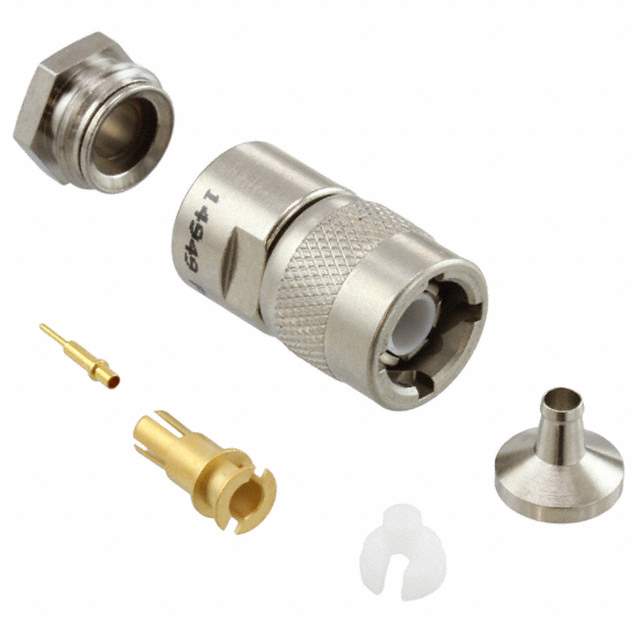

PL155FL-47 Real Image
Same model may have multiple batches, images only for reference.

PL155FL-47

Part No PL155FL-47
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN TRS PLUG STR SOLDER / TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
Datasheet
PL155FL-47 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions Trompeter
Series 150
Package Bulk
Connector Style TRS, Twinaxial/Triaxial
Connector Type Plug, Male Pin (Concentric)
Contact Termination Solder
Shield Termination Wrench Clamp
Impedance Non-Constant
Mounting Type Free Hanging (In-Line)
Cable Group M17/176-00002
Fastening Type Bayonet Lock
Frequency - Max 500 MHz
Number of Ports 1
Features Four Lug
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 200°C
Voltage Rating 400 V
Mating Cycles 500
Base Product Number PL155
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names PL155FL47,1097-1171
Standard Package 1
Win Source Part Number 1204897-PL155FL-47
Ultra Librarian 3D Model Ultra Librarian PL155FL-47 CAD Model

Description

The Cinch Connectivity Solutions Trompeter PL155FL-47 is a TRS, Twinaxial/Triaxial plug male pin coaxial connector that is designed for use in various RF applications.

  • Connector Type: TRS, Twinaxial/Triaxial plug male pin coaxial connector
  • Fastening Type: Bayonet Lock
  • Contact Termination: Solder
  • Material: Brass
  • Finish: Nickel
  • Impedance: Non-constant
  • Frequency Range: Up to 500 MHz
  • Shield Termination: Wrench Clamp
  • Cable Group: M17/176-00002
  • Temperature Range: -65°C to 200°C
  • Mating Cycle: 500
  • Packaging: Bulk
  • Standard Package: 1
