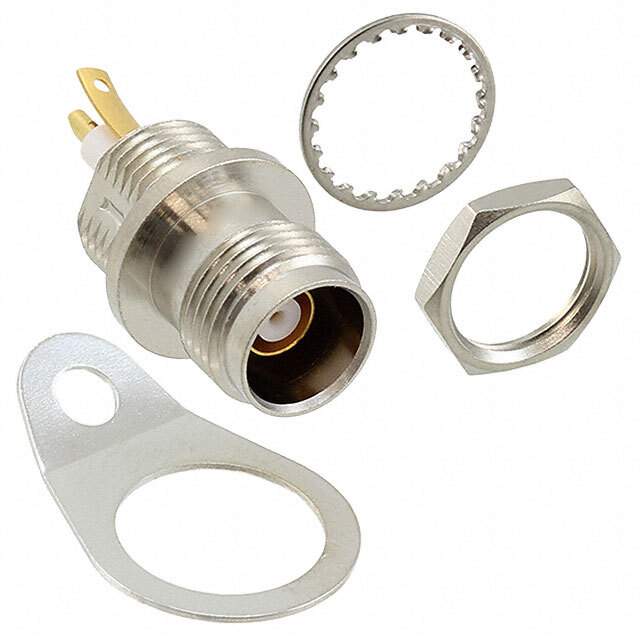

BJ377 Real Image
Same model may have multiple batches, images only for reference.

BJ377

Part No BJ377
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN TRT JACK STR SOLDER / TRT, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder Cup
Datasheet
BJ377 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions Trompeter
Series 370
Package Bulk
Connector Style TRT, Twinaxial/Triaxial
Connector Type Jack, Female Socket (Concentric)
Contact Termination Solder Cup
Shield Termination Solder Tag
Impedance Non-Constant
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Threaded
Frequency - Max 500 MHz
Number of Ports 1
Features Extended Insulation
Housing Color Silver
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 400 V
Mating Cycles 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1097-1215
Standard Package 1
Win Source Part Number 1066231-BJ377
Ultra Librarian 3D Model Ultra Librarian BJ377 CAD Model

Description

The Cinch Connectivity Solutions Trompeter 370 series 1066231-BJ377 is a female socket jack connector that is designed for bulkhead - rear side nut mounting feature.

  • Fastening Type: threaded
  • Contact Termination: solder cup
  • Connector Type: TRT/Twinaxial/Triaxial
  • Voltage Rating: 400V
  • Maximum Frequency: 500MHz
  • Housing Color: silver
  • Port: one
  • Impedance: non-constant
  • Body Material: brass
  • Body Finish: nickel
  • Center Contact Material: beryllium copper
  • Center Contact Plating: gold
  • Dielectric Material: not specified
  • Mating Cycle: 500
  • Temperature Range: -65°C ~ 165°C
  • Includes: 3 pieces (connector, lockwasher, and nut)
  • MSL Level: 1 (Unlimited)
