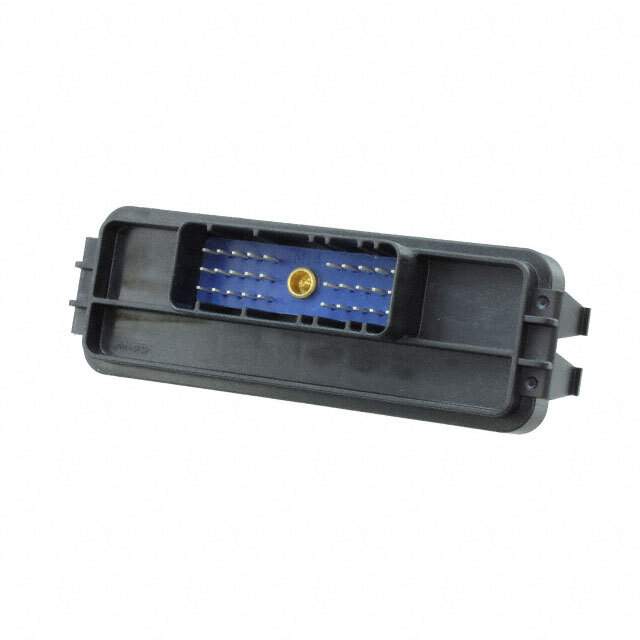

Same model may have multiple batches, images only for reference.

5810130064

Name: 5810130064
Brand: Cinch Connectivity Solutions
SKU: 1341500
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5810130064
Manufacturer	Cinch Connectivity Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 30POS / Connector Header Through Hole, Right Angle 30 position
Datasheet	5810130064 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Cinch Connectivity Solutions
Series	ModICE® ME
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Number of Positions	30
Number of Rows	3
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Contact Length - Post	0.126" (3.20mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polymer, Glass Filled
Temperature Range - Operating	-40°C ~ 85°C
Ingress Protection	IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Color	Black
Current Rating (Amps)	10A
Applications	Automotive
Standard Package	72
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341500-5810130064
Ultra Librarian 3D Model	Ultra Librarian 5810130064 CAD Model

Description

The ModICE® ME series from Cinch Connectivity Solutions is a high-quality range of Headers, Male Pins.

Contacts: 30 male pin contacts
Row Configuration: 3-row
Termination: Solder
Contact Material: Brass
Contact Plating: Tin
Shrouding: Shrouded-4 wall
Mounting: Through-hole, right angle mountable
Current Rating: 10A
Temperature Range: -40°C to 85°C
Application: Automotive
Ingress Protection: IP67/IP69K
Flammability Rating: -
