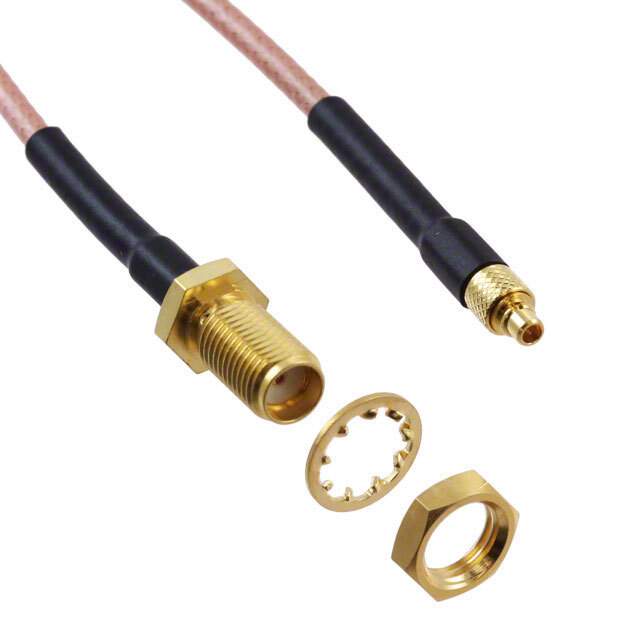

415-0071-MM500 Real Image
Same model may have multiple batches, images only for reference.

415-0071-MM500

Part No 415-0071-MM500
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Cables (RF)
Description CBL ASSY SMA-MMCX RG316 19.69" / Cable Assembly Coaxial SMA to MMCX RG-316 19.69" (500.00mm)
Datasheet
415-0071-MM500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Cinch Connectivity Solutions Johnson
Package Bulk
Style SMA to MMCX
1st Connector SMA Jack
2nd Connector MMCX Plug
1st Contact Gender Female
2nd Contact Gender Male
Length 19.69" (500.00mm)
Cable Type RG-316
Cable Impedance 50 Ohms
Connector Impedance 50 Ohms
Overall Impedance 50 Ohms
Frequency - Max 6 GHz
Color White
Features Shielded
Base Product Number 415-0071
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.20.0000
Other Names J10362
Standard Package 1
Win Source Part Number 1179902-415-0071-MM500
Ultra Librarian 3D Model Ultra Librarian 415-0071-MM500 CAD Model

Description

The Cinch Connectivity Solutions Johnson 1179902-415-0071-MM500 is a cable assembly that falls under the category of coaxial cables (RF).

  • Cable Type: RG-316
  • Frequency Max: 6 GHz
  • Cable Length: 19.69" (500.00mm)
  • Style: SMA to MMCX
  • First Connector: SMA Jack
  • Second Connector: MMCX Plug
  • Alternative Parts: 415-0071-MM500
  • HTSUS: 8544.20.0000
  • First Contact Gender: Female
  • Second Contact Gender: Male
  • Cable Impedance: 50 Ohms
  • Overall Impedance: 50 Ohms
  • Connector Impedance: 50 Ohms
  • Manufacturer: Cinch Connectivity Solutions Johnson
