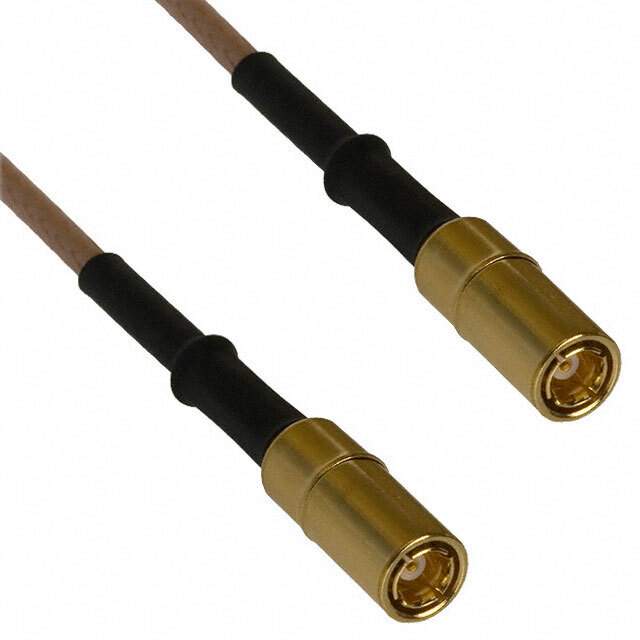

415-0003-MM500 Real Image
Same model may have multiple batches, images only for reference.

415-0003-MM500

Part No 415-0003-MM500
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Cables (RF)
Description CBL ASSY SMB PLUG RG316 19.69" / Cable Assembly Coaxial SMB to SMB RG-316 19.69" (500.00mm)
Datasheet
415-0003-MM500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Cinch Connectivity Solutions Johnson
Package Bulk
Style SMB to SMB
1st Connector SMB Plug
2nd Connector SMB Plug
1st Contact Gender Female
2nd Contact Gender Female
Length 19.69" (500.00mm)
Cable Type RG-316
Cable Impedance 50 Ohms
Connector Impedance 50 Ohms
Overall Impedance 50 Ohms
Frequency - Max 4 GHz
Color Copper
Features Shielded
Base Product Number 415-0003
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.20.0000
Other Names J10244
Standard Package 1
Win Source Part Number 1184110-415-0003-MM500
Ultra Librarian 3D Model Ultra Librarian 415-0003-MM500 CAD Model

Description

The Cinch Connectivity Solutions Johnson 1184110-415-0003-MM500 is a coaxial cable assembly that is designed for use in various RF applications. It has an SMB plug as the 1st connector and an SMB plug as the 2nd connector. The cable has an impedance of 50 Ohms and a length of 19.69" (500.00mm). It has a frequency range of up to 4 GHz and is suitable for use with RG-316 cable type. The 1184110-415-0003-MM500 is available in bulk packaging.
