Same model may have multiple batches, images only for reference.

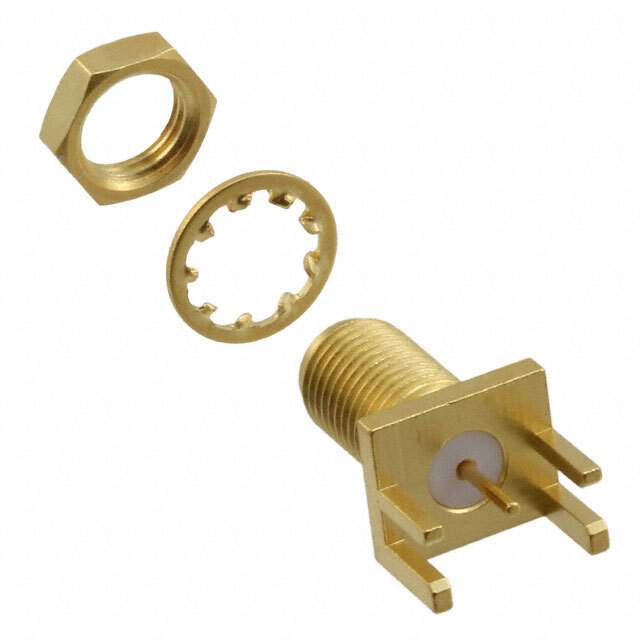

142-0721-871 Real Image
Same model may have multiple batches, images only for reference.

142-0721-871

Part No 142-0721-871
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Datasheet
142-0721-871 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Threaded
Frequency - Max 18GHz
Housing Color Gold
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 760411-142-0721-871
Popularity Medium
Supply and Demand Status Limited
Family Name 142-0721
Introduction Date March 26, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 142-0721-871 CAD Model

Description

The Cinch Connectivity Solutions Johnson electronic component with Win Source Part Number 760411-142-0721-871 is a connector, interconnect product.

  • Packaging: Bulk
  • Operating Temperature: -65°C ~ 165°C
  • Connector Type: Jack, Female Socket
  • Fastening Type: Threaded
  • Contact Termination: Solder
  • Connector Style: SMA
  • Voltage Rating: 335V
  • Frequency - Max: 18GHz
  • Housing Color: Gold
  • Mounting: Board Edge, End Launch
  • Impedance: 50 Ohm
  • Mounting Feature: Bulkhead - Front Side Nut
  • Body Material: Brass
  • Insertion Loss: -
  • Shield Termination: Solder
  • Cable Group: -
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycles: 500
  • Family Name: 142-0721
  • Supply and Demand: Limited
  • ECCN: EAR99
  • Country of Origin: United States of America
  • EOL Date: 2026
