Same model may have multiple batches, images only for reference.

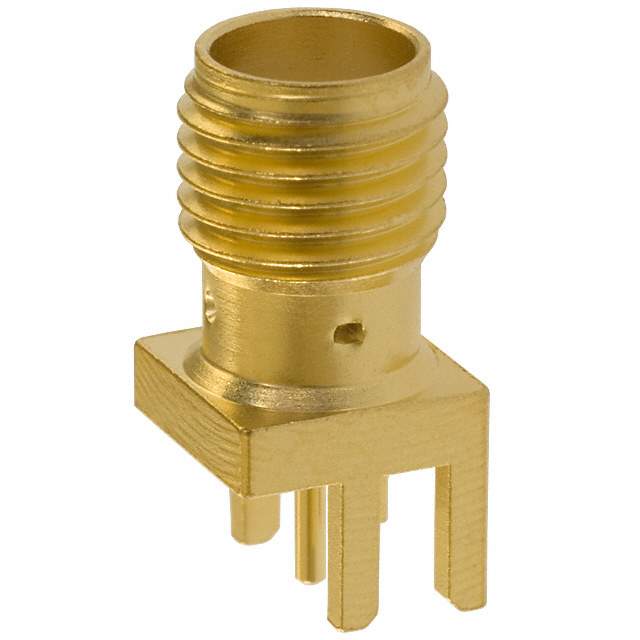

142-0711-821 Real Image
Same model may have multiple batches, images only for reference.

142-0711-821

Part No 142-0711-821
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Datasheet
142-0711-821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch
Fastening Type Threaded
Maximum Input Frequency 18GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 038792-142-0711-821
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 142-0711-821 CAD Model

Description

142-0711-821: Reliable RF Coaxial Connector

The 142-0711-821 is ideal for projects requiring steadfast RF signal transmission, offering consistent performance and robust protection against interference.

  • Applications: Telecommunications equipment, RF testing devices, IoT communication modules, broadcast systems
  • Features & Benefits:
    • Excellent protection against RF interference
    • Consistency in signal quality
    • Easy installation with a secure fit
  • Additional Details: Its advanced design reduces the risk of signal distortion, ensuring reliable data transmission in all environments.
