142-0701-631

Part No 142-0701-631
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)

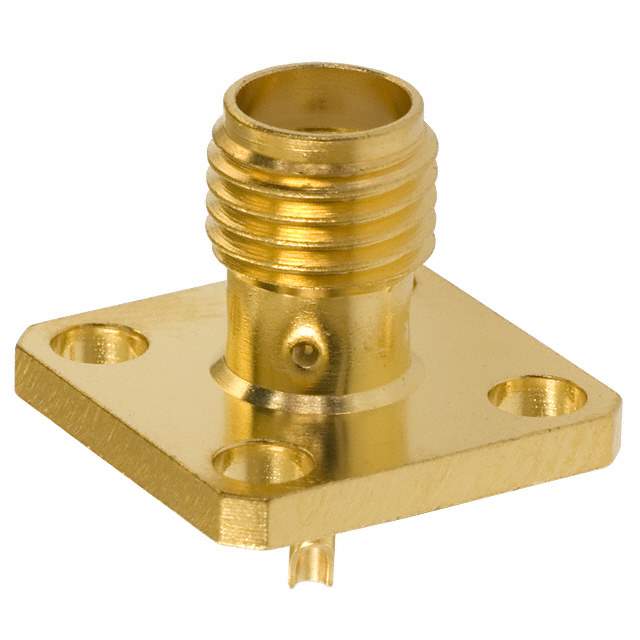

Description CONN SMA JACK STR 50 OHM SOLDER
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50 Ohm
Mounting Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Maximum Input Frequency 18GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 038787-142-0701-631
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 142-0701-631 CAD Model

Description

Product Overview

The 142-0701-631 offers a unique balance of innovation, efficiency, and versatility. It is designed for projects that require both cutting-edge technology and consistent reliability.

Features and Benefits

  • Innovative design: Incorporates the latest technological advancements for superior performance.
  • Efficiency: Optimized for energy-saving operations without compromising output.
  • Flexibility: Easily adaptable to varying technological environments and applications.

Applications

  • Renewable energy systems
  • Smart home devices
  • Research and development labs
  • High-tech manufacturing

Ideal for futuristic projects, the 142-0701-631 harmonizes state-of-the-art features with tried-and-tested reliability.
