Same model may have multiple batches, images only for reference.

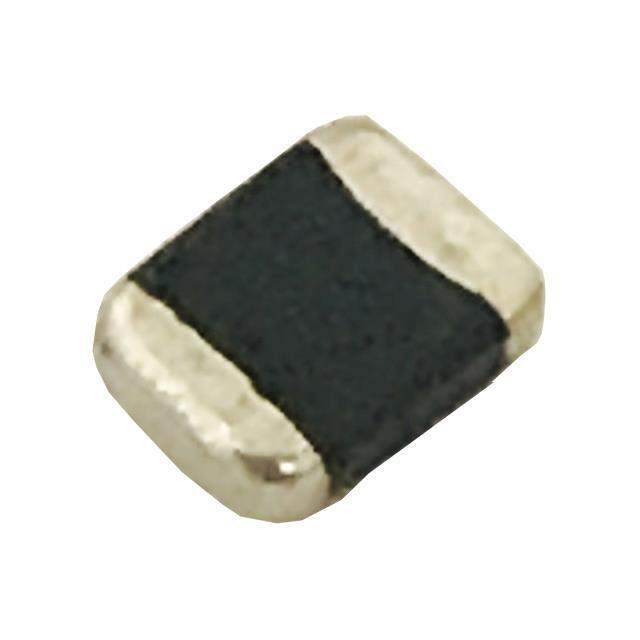

BDHE003225251R0MQ1 Real Image
Same model may have multiple batches, images only for reference.

BDHE003225251R0MQ1

Part No BDHE003225251R0MQ1
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER / 1 µH Unshielded Molded Inductor 3.5 A 34mOhm Max 1210 (3225 Metric)
Datasheet
BDHE003225251R0MQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Chilisin Electronics
Series BDHE
Package Tape & Reel (TR)
Type Molded
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 6A
Shielding Unshielded
DC Resistance (DCR) 34mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.110" (2.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-BDHE003225251R0MQ1TR
Standard Package 1,500
Win Source Part Number 1036112-BDHE003225251R0MQ1
Ultra Librarian 3D Model Ultra Librarian BDHE003225251R0MQ1 CAD Model

Description

The Chilisin 1036112-BDHE003225251R0MQ1 is a molded fixed inductor with an inductance of 1 µH and a tolerance of ±20%.

  • DC resistance: 34mOhm Max
  • Maximum current rating: 3.5 A
  • Case/Package: 1210 (3225 Metric)
  • Packaging: tape and reel
  • Maximum operating temperature: -40°C ~ 125°C
  • Product status: low popularity product
  • ECCN: EAR99
