Same model may have multiple batches, images only for reference.

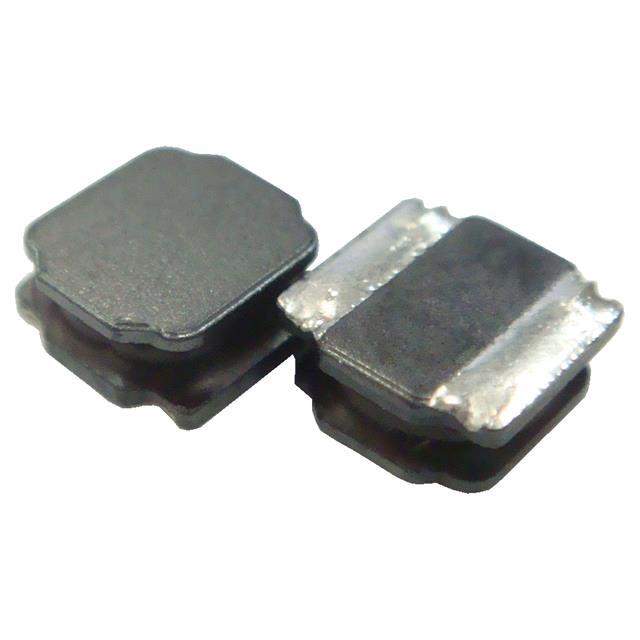

AWVS00404012100M00 Real Image
Same model may have multiple batches, images only for reference.

AWVS00404012100M00

Part No AWVS00404012100M00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER / 10 µH Shielded Inductor 810 mA 190mOhm 1616 (4040 Metric)
Datasheet
AWVS00404012100M00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Chilisin Electronics
Series AWVS
Package Tape & Reel (TR)
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 810 mA
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 190mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1616 (4040 Metric)
Supplier Device Package 1616
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-AWVS00404012100M00TR
Standard Package 1,000
Win Source Part Number 1145935-AWVS00404012100M00
Ultra Librarian 3D Model Ultra Librarian AWVS00404012100M00 CAD Model

Description

The Chilisin electronic component with Win Source Part Number 1145935-AWVS00404012100M00 is an inductor, coil, or choke that is part of the AWVS series.

  • Type: Inductor, Coil, or Choke
  • Series: AWVS
  • Package: Tape and Reel (TR)
  • Shielding: Shielded
  • Inductance: 10 µH
  • Tolerance: ±20%
