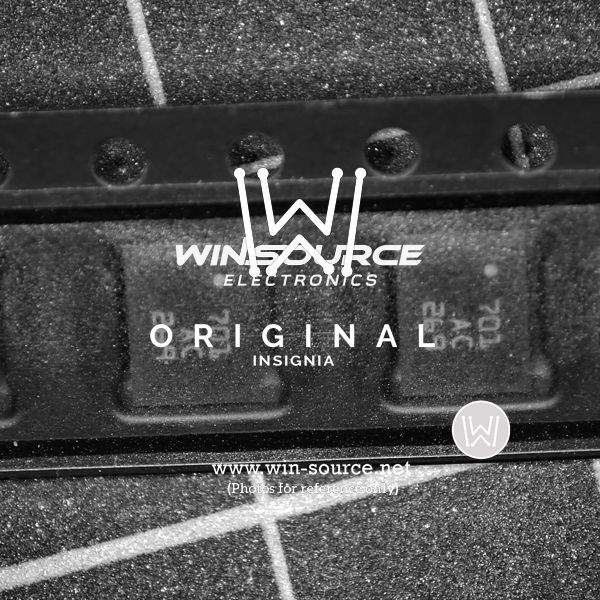

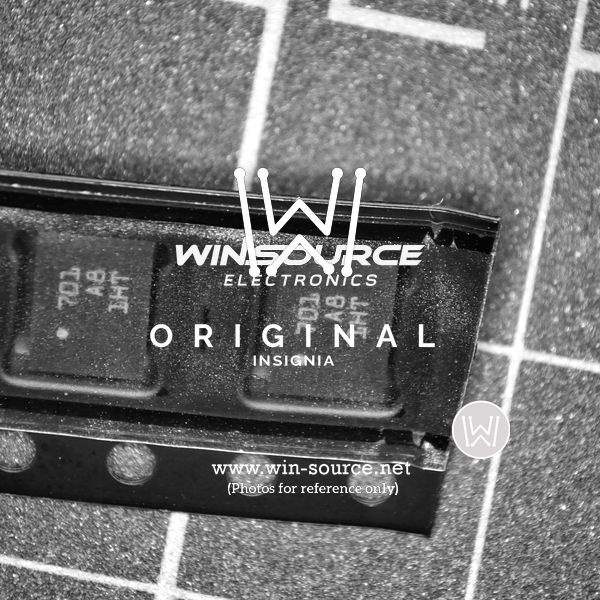

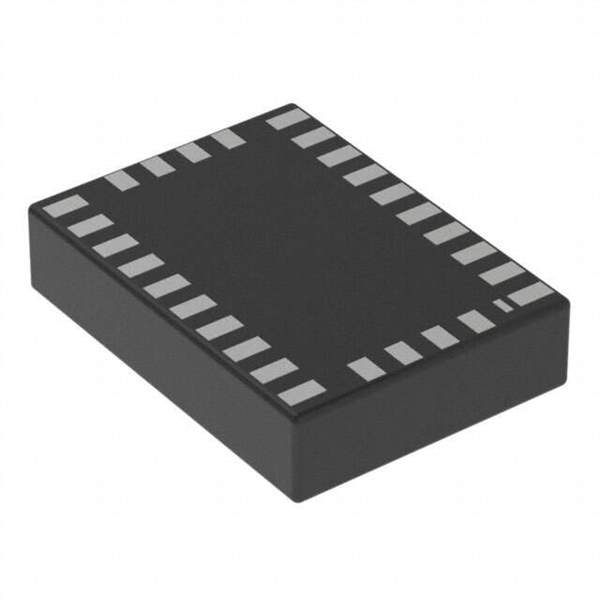

BNO085 Real Image BNO085 Real Image2 BNO085 Real Image3
Same model may have multiple batches, images only for reference.
BNO085 Real Image BNO085 Real Image2 BNO085 Real Image3
BNO085 Real Image BNO085 Real Image2 BNO085 Real Image3
Same model may have multiple batches, images only for reference.

BNO085

Part No BNO085
Manufacturer CEVA Technologies, Inc.
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description IMU ACCEL/GYRO/MAG I2C 32BIT / Accelerometer, Gyroscope, Magnetometer, 9 Axis Sensor I²C, SPI, UART Output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - IMUs (Inertial Measurement Units)
Manufacturer CEVA Technologies, Inc.
Packaging Reel - TR
Sensor Type Accelerometer, Gyroscope, Magnetometer, 9 Axis
Output Type I²C, SPI, UART
Temperature Range - Operating -40°C ~ 85°C
Case / Package 28-TFLGA Module
Supplier Device Package 28-LGA (5.2x3.8)
Mounting Surface Mount
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 1888-1006-2,1000 4200 /BNO085,1888-1006-6,1888-1006-1,68810-91242-1087361*22829448
Standard Package 4,000
Win Source Part Number 1336520-BNO085
Ultra Librarian 3D Model Ultra Librarian BNO085 CAD Model

Description

The CEVA Technologies, Inc. electronic component is a 9-axis motion sensor with an output type of I²C, SPI, UART.

  • Output Type: I²C, SPI, UART
  • Operating Temperature: -40°C to 85°C
  • Package: 28-LGA (5.2x3.8)
  • Packaging: reel
  • Package Quantity: 4,000
  • RoHS Compliant: Yes
  • Manufacturer Part Number: 1336520-BNO085
