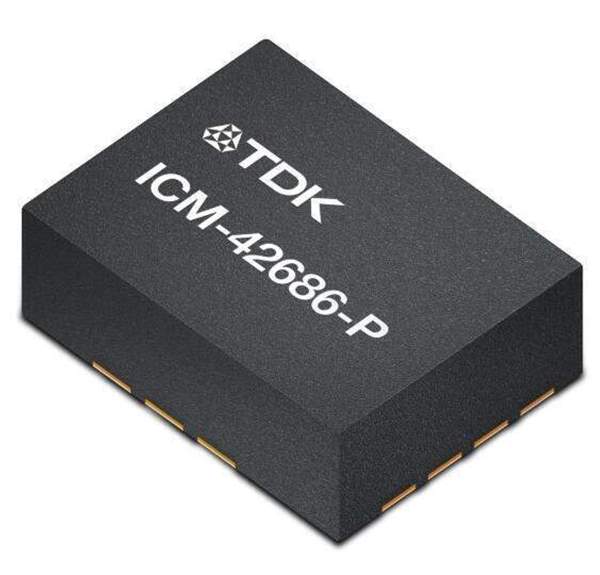

ICM-42686-P TDK InvenSense
Same model may have multiple batches, images only for reference.

ICM-42686-P

Part No ICM-42686-P
Manufacturer TDK InvenSense
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description IMUs - Inertial Measurement Units High FSR (32 G, 4000 dps) 6-Axis MEMS MotionTrackingTM IMU
Datasheet
ICM-42686-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK
Category Motion Sensors - IMU (Inertial Measurement Units)
Series MotionTracking™
Part Status Active
Sensor Type Accelerometer, Gyroscope, 3 Axis
Output Type I²C, I3C℠, SPI
Operating Temperature -40°C ~ 85°C
Package / Case 14-VFLGA
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian ICM-42686-P CAD Model

Description

IMUs - Inertial Measurement Units High FSR (32 G, 4000 dps) 6-Axis MEMS MotionTrackingTM IMU
