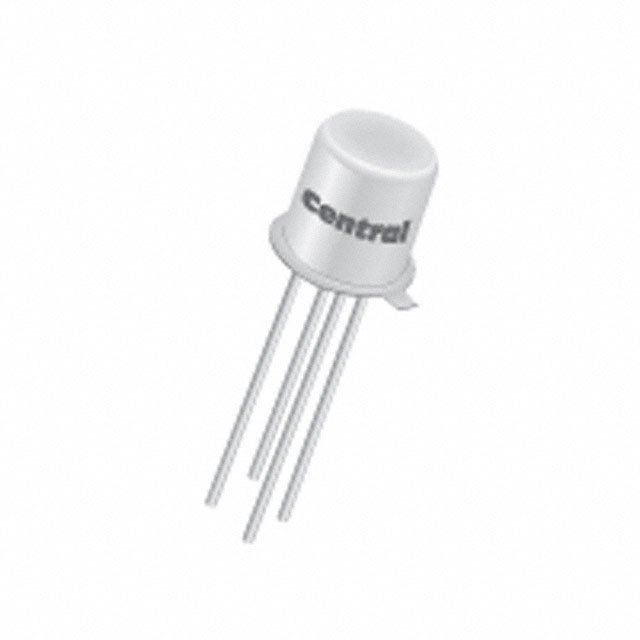

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Active
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 15V
Frequency - Transition 600MHz
Noise Figure (dB Typ @ f) 6dB @ 60kHz
Maximum Power Dissipation 200mW
Typical Gain (hFE) (Min) 20 @ 3mA, 1V
Maximum Current Collector 50mA
Temperature Range - Operating -65°C to 200°C (TJ)
Mounting Through Hole
Case / Package TO-72
Win Source Part Number 053564-2N918
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2N918 CAD Model

Description

Overview

The 2N918 is a high-frequency NPN silicon planar transistor commonly used for RF and microwave applications. Known for its reliability and performance, it plays a crucial role in amplifying signals across various electronic projects.

Applications

  • RF Amplifiers
  • Oscillators
  • Communication Equipment
  • Signal Generators

Features and Benefits

  • High Transition Frequency of up to 400 MHz
  • Low Noise Figure for enhanced performance in high-frequency applications
  • Exceptional Gain Bandwidth Product
  • Robust construction ensures long-term reliability

Additional Details

The 2N918 is packaged in a TO-18 metal can providing excellent thermal capabilities, making it suitable for high-temperature environments.
