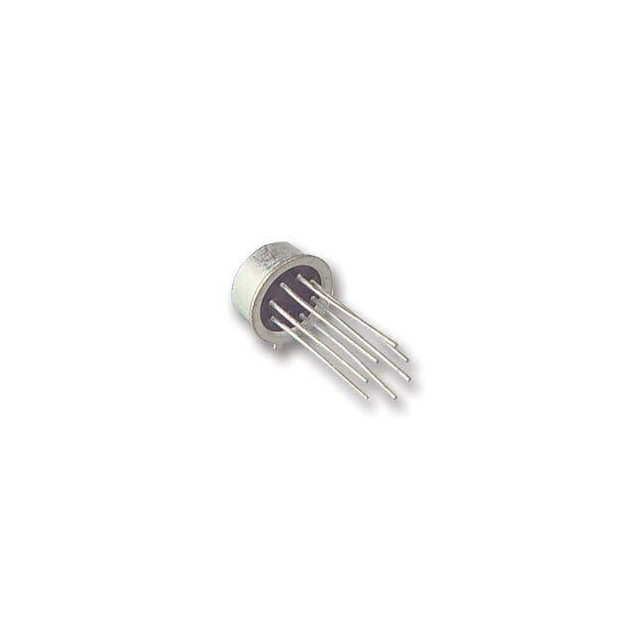

2N3807 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Obsolete
Transistor Type 2 PNP (Dual)
Current - Collector (Ic) (Maximum) 50mA
Voltage - Collector Emitter Breakdown (Maximum) 60V
DC Current Gain (hFE) (Minimum) at Ic, Vce 300 at 1mA, 5V
Maximum Power 600mW
Frequency - Transition 100MHz
Mounting Style Through Hole
Manufacturer Package TO-78-6 Metal Can
Supplier Device Package TO-78-6
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123789-2N3807
Manufacturer Homepage www.centralsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3807 CAD Model

Description

The 2N3807 is a dual PNP transistor manufactured by Central Semiconductor Corp.

  • Popularity: medium
  • Supply and Demand Status: limited
  • Package: TO-78-6 metal can
  • Mounting Style: through hole
  • Maximum Collector Current (Ic): 10A
  • Maximum Collector-Emitter Breakdown Voltage: 80V
