Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 700mA
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) at Ib, Ic 300mV at 15mA, 150mA
DC Current Gain (hFE) (Minimum) at Ic, Vce 50 at 150mA, 10V
Maximum Power 5W
Frequency - Transition 100MHz
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole

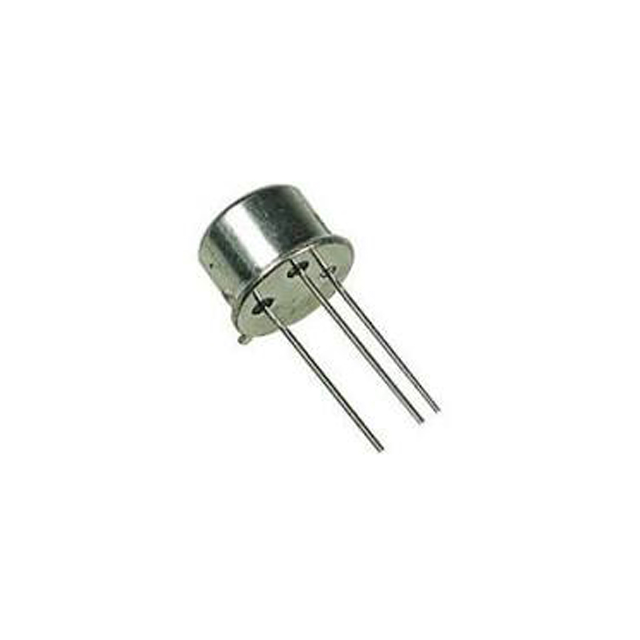

Manufacturer Package TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1123692-2N3053A
Manufacturer Homepage www.bocasemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3053A CAD Model

Description

The Central Semiconductor Corp 2N3053A is a high-frequency NPN transistor that is ideal for use in applications such as amplifiers, oscillators, and switching circuits. Bold the product name (e.g., BAV99S,135 → 2N3053A) and manufacturer (e.g., Nexperia USA Inc. → Central Semiconductor Corp).

  • Type: NPN Transistor
  • Applications: Amplifiers, oscillators, and switching circuits
  • Maximum Collector Current: 700mA
  • Collector-Emitter Breakdown Voltage: 60V
  • Package: TO-39-3 metal can
  • Frequency Transition: 100MHz
  • DC Current Gain: 50 @ 150mA, 10V
  • Vce Saturation: 300mV @ 15mA, 150mA
  • RoHS Compliant: Yes
  • Packaging: Bulk
