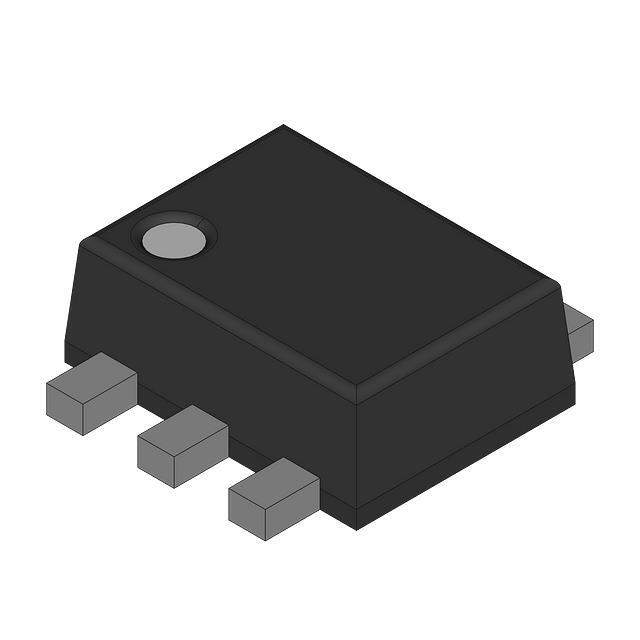

UPG2406TK-E2-A Real Image
Same model may have multiple batches, images only for reference.

UPG2406TK-E2-A

Part No UPG2406TK-E2-A
Manufacturer CEL
Catalog RF Switches
Description 0.01 to 3.0 GHz SPDT SWITCH | IC RF SWITCH SPDT 3GHZ 6MINIMOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel
Status Obsolete
RF Type Bluetooth, WLAN
Topology Reflective
Circuit SPDT
Frequency Range 10MHz ~ 3GHz
Isolation 17dB
Insertion Loss 0.53dB
Test Frequency 3GHz
P1dB 30.5dBm
IIP3 60dBm
Impedance 50Ohm
Temperature Range - Operating -45°C ~ 85°C
Manufacturer Package 6-SMD, Flat Leads
Supplier Device Package 6-Minimold
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1278075-UPG2406TK-E2-A
Manufacturer Homepage www.nec.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPG2406TK-E2-A CAD Model

Description

The CEL UPG2406TK-E2-A is a reflective SPDT circuit with an impedance of 50Ohm and a test frequency of 3GHz.

  • Impedance: 50Ohm
  • Test Frequency: 3GHz
  • Frequency Range: 10MHz ~ 3GHz
  • Insertion Loss: 0.53dB
  • Isolation: 17dB
  • IIP3: 60dBm
  • P1dB: 30.5dBm
  • RF Type: Bluetooth, WLAN
  • Package: Reel
  • Mounting: SMD (SMT)
  • Product Status: Obsolete
  • Popularity: Medium
  • Temperature Range: -45°C ~ 85°C
