UPG2314T5N CEL

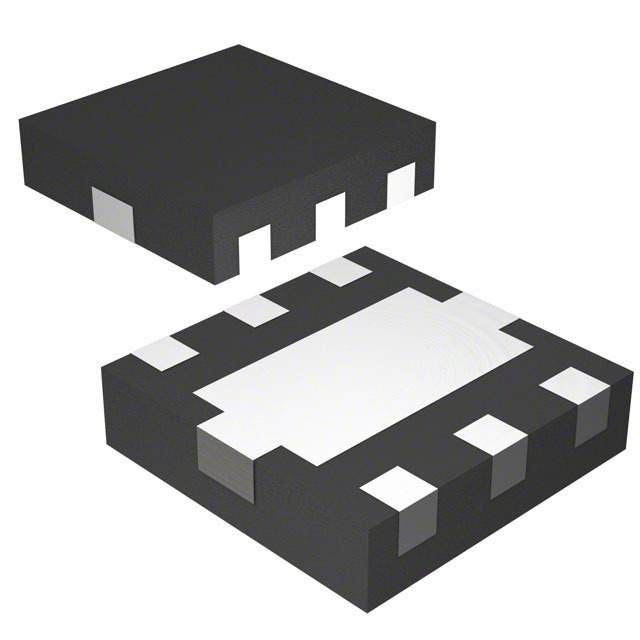

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Frequency 2.4GHz to 2.5GHz
P1dB 18dBm (63.1mW) to 20dBm (100mW)
RF Type Bluetooth
Supply Voltage - Operating 2.7 V to 3.6 V
Operating Supply Current 65mA to 70mA
Test Frequency 450MHz
Case / Package 6-TSON
Win Source Part Number 396043-UPG2314T5N
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPG2314T5N CAD Model

Description

The CEL 396043-UPG2314T5N is a Bluetooth RF amplifier designed for 2.4GHz to 2.5GHz frequency range.

  • P1dB: With a P1dB rating of 18dBm (63.1mW) to 20dBm (100mW), this amplifier provides excellent signal amplification.
  • Package: The amplifier is packaged in a 6-TSON case and requires an operating voltage of 2.7V to 3.6V with an operating supply current of 65mA to 70mA.
  • Supply and Demand Status: Supply and demand status is limited.
