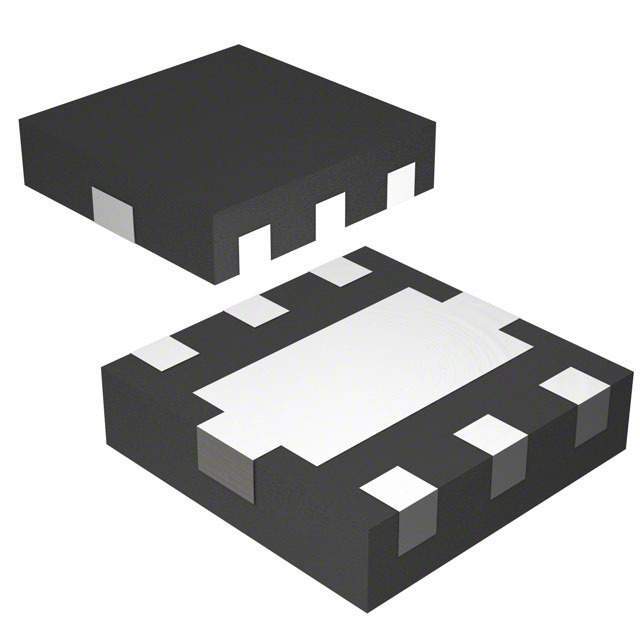

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Frequency 2.4GHz to 2.5GHz
RF Type Bluetooth
Supply Voltage - Operating 1.8 V to 3.5 V
Operating Supply Current 130mA
Case / Package 6-TSON
Win Source Part Number 036128-UPG2250T5N-E2-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name uPG2250T5
Introduction Date December 12, 2006
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UPG2250T5N-E2-A CAD Model

Description

The CEL uPG2250T5N-E2-A is a 6-TSON RF/IF and RFID product.

  • Frequency Range: It has a frequency range of 2.4GHz to 2.5GHz
  • Operating Supply Voltage: and operates on a supply voltage range of 1.8 V to 3.5 V.
  • Operating Supply Current: The operating supply current is 130mA.
  • Introduction Date: The introduction date was December 12, 2006
  • Estimated EOL Date: and the estimated EOL date is obsolete/end of life.
  • Alternative Parts: The alternative parts (cross-reference) are uPG2255T6N-E2-A, uPG2255T6N-E2, SC1905A-00A00, HMC-APH633-SX.
  • Supply and Demand Status: The supply and demand status is balanced.
